Description:
Brand:
Mark
Vorel
Symbol
73410
Series
GRD
Application
tin soldering, pyrography - burning in wood, shrinking heat-shrinkable materials, soldering Cu pipes, unscrewing stuck screws, thawing, bending and hot forming, welding and
Power
25~80W
Working time
60 min
Blowing temperature
600 ËšC
Max. tip temperature
450 ËšC
Tank capacity
15 ml
Flame temperature
1300 ËšC
Gas consumption
6.6g/h
Type of feed gas
butane lighter gas, propane-butane lighter gas
Weight with empty tank
60 g

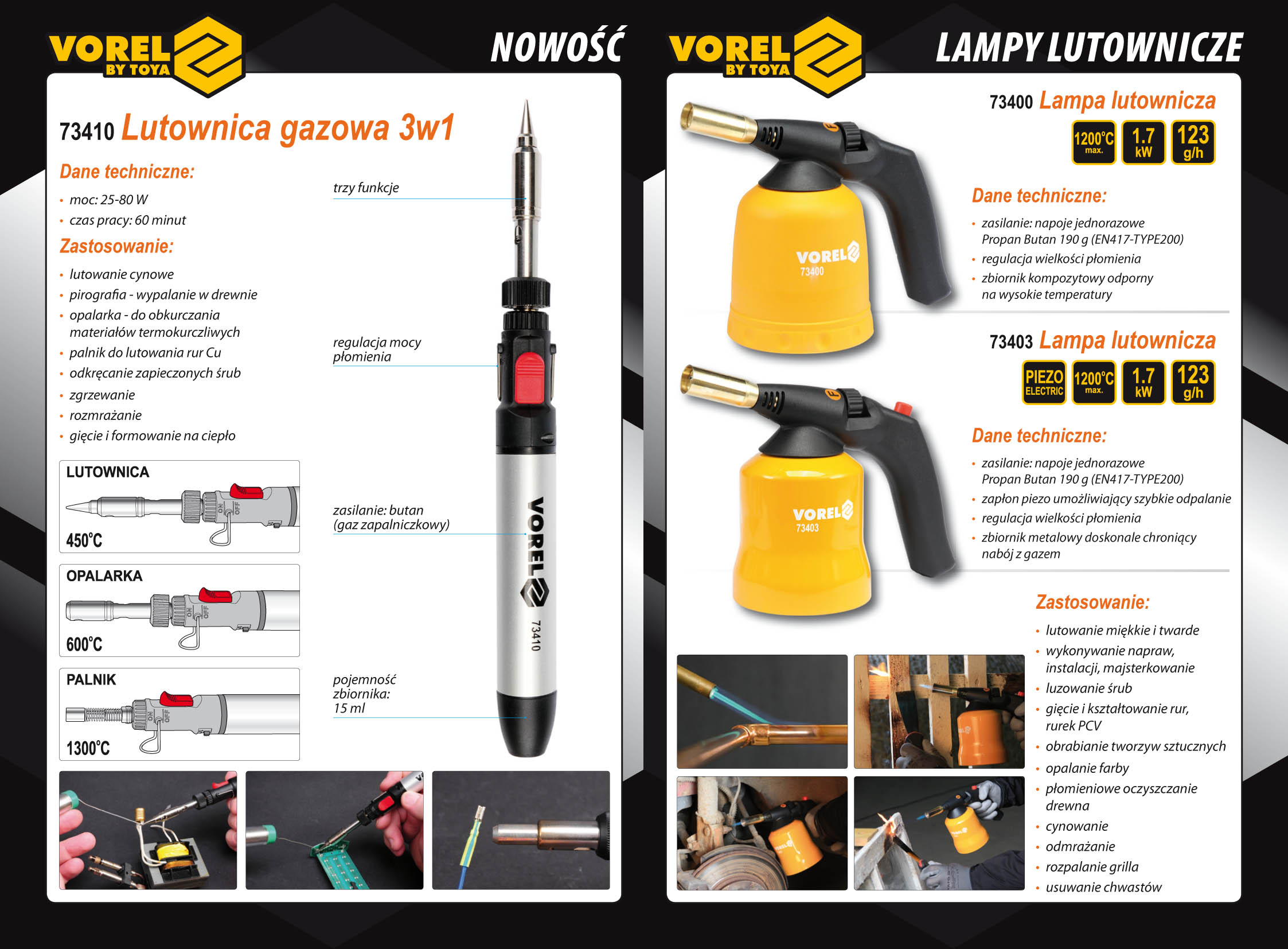

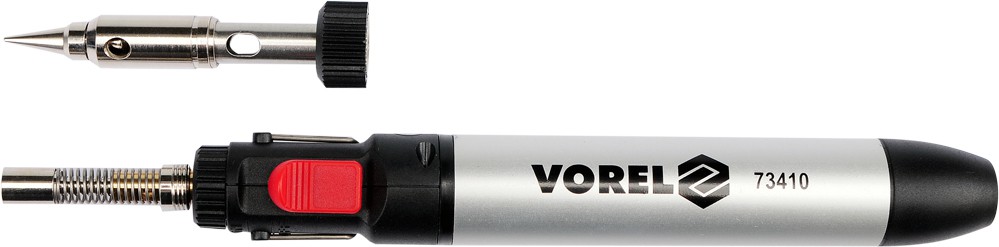

VOREL 73410 3-in-1 gas soldering iron powered by lighter gas (butane).

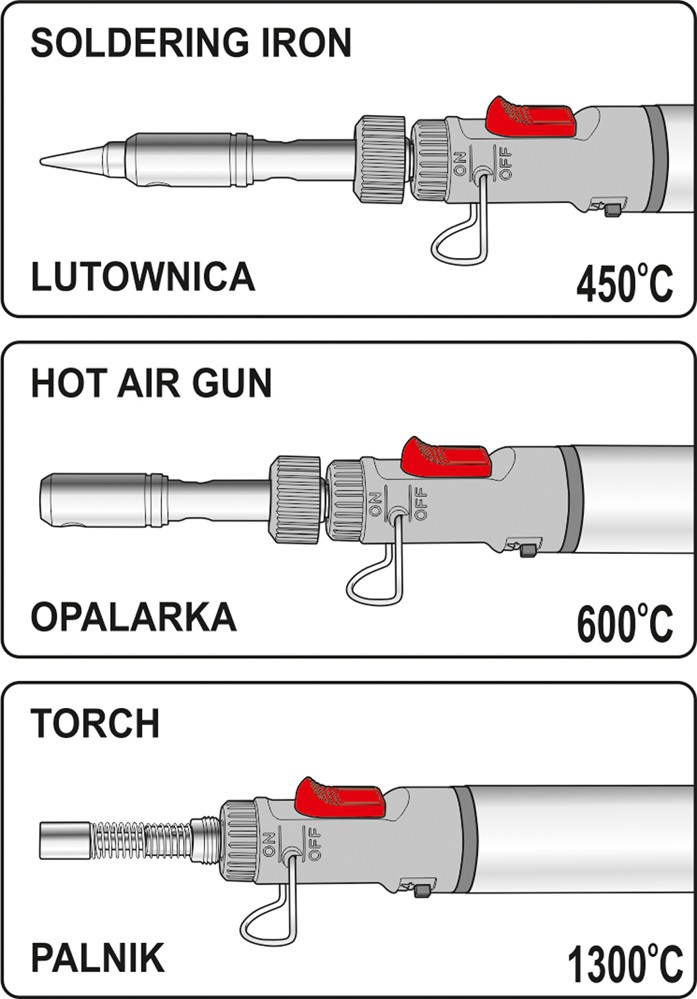

Can be used as:
soldering iron at 450°C
burner at 1300°C
heat gun with a temperature of 600°C
It has a smooth adjustment of the flame size, a gas cut-off button and a foldable stand.
Destiny:
for soldering
for melting
for cutting at high temperature
for welding
to shrink
for wood burning
Refilling the tank:
Close the gas valve by turning the regulator knob as far as it will go in the direction marked "1" and make sure that the switch is in the position marked "OFF".
Good quality gas should be used. The gas container should be equipped with an adapter adapted to the type of valve.
Point the burner with the valve upwards. Connect the outlet of the gas container to the valve. Press the cylinder against the valve.
Fill until the first signs of overfilling, gas will start to come out from between the burner connections from the gas container.
Put the burner aside for a few minutes to stabilize the gas pressure in the tank.
(2)
