Description:
Brand:
Mark
Yato
Symbol
YT-82560
Series
GRF
Application
oil paints, acrylic paints, emulsion paints, primers, impregnations
Set contents
painting unit, spray gun, hose connecting the gun with the unit
Type
hydrodynamic
Nozzle size
517
Mass
6.5kg
Tension
220-240 V a.c.
Power
650 W
Efficiency
1.1 l/min
Hose length
7.5 m
Level of security
IP20
Frequency
50 Hz
Electrical insulation class
AND
Sound pressure
93.3 ± 3.0 dB(A)
Acoustic power
104.3 ± 3.0 dB(A)
Power consumption during operation
2.0-4.5A
Vibrations
≤ 2.5 m/s²
Max. working pressure
20.7 MPa
Temperature of the coating material
5~40 ËšC
Spray jet range
250-310mm

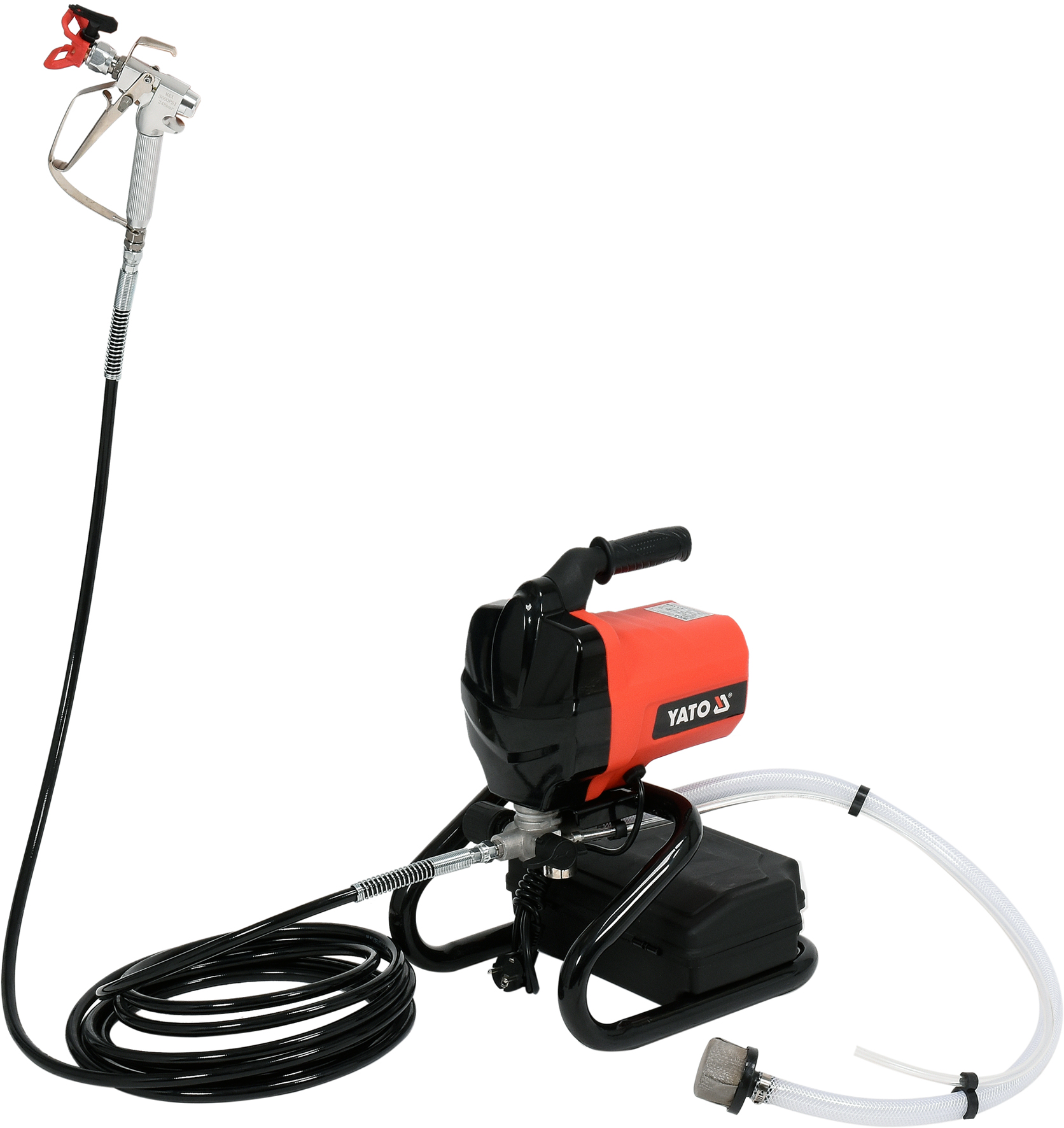

Hydrodynamic painting unit with a power of 650 W and a pressure of 207 Bar. It has the function of adjusting the spray stream in the range of 250-310mm. The unit is equipped with a 7.5 meter long hose, thanks to which the tool has a large working range, which significantly improves the comfort of work. The device has a pump that draws paint from any dispenser. Designed for painting large surfaces of walls and ceilings. Suitable for latex, acrylic paints, emulsions, enamels, etc.
fast, efficient and even coverage from the first layer
paint consumption 10-15% lower compared to technologies using compressed air
regulation of the spray stream in the range of 250–310 mm using a knob
equipped with a pump that independently draws paint from any tank
possibility of spraying vertically and horizontally
lasting effect - the unit firmly drives paint particles into the wall structure, without causing the scalding of the plaster typical of synthetic rollers
easy operation and maintenance
the set includes: a paint gun and a 7.5 m hose for connection
