Automotive Sensor Simulator (63404)

10 (1)

Price show only for registered users

Item code: 63404

Description:

Brand:
BGS-technic
Description
to simulate signals of automotive sensors
for finding hard-to-diagnose faults
possible outputs:

DC voltage: 0.1 to 5 volts, increment: 0.1 V
sine-like signal: 1 Hz to 300 Hz (5 volts), 1 Hz increment at 1 - 100 Hz, 10 Hz increment at 100 - 300 Hz
rectangular-like signal: 1 Hz to 1 KHz (5 volts), 1 Hz increment at 1 - 100 Hz, 10 Hz increment at 100 - 1000 Hz, for the simulation of e.g. MAP sensors
resistance: 100 ohm - 20 kohm, for the simulation of temperature sensors
lambda probe signal, simulating the following 3 signals:
1. permanently rich
2. permanently lean
3. alternating rich/lean
crankshaft position sensor signal
camshaft position sensor signal

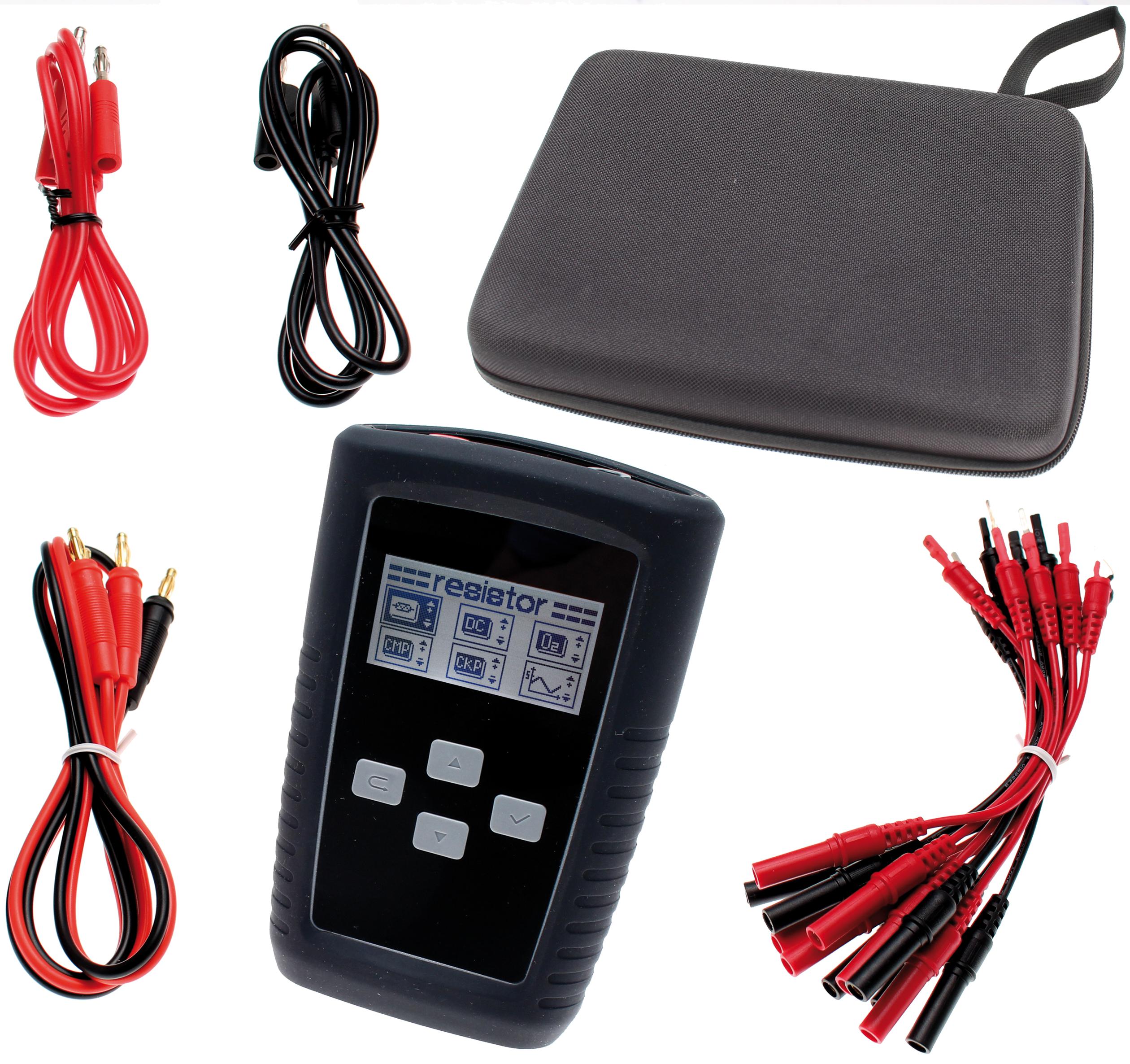

includes the following tools:

1 simulator
1 double measuring cable (red/black), 900 mm
1 measuring cable (red), 4 mm plugs (stackable), 900 mm
1 measuring cable (black), 4 mm plugs (stackable), 900 mm
3 measuring adaptor (red), 4 mm round socket to timer socket
3 measuring adaptor (black), 4 mm round socket to timer socket
3 measuring adaptor (red), 4 mm round socket to timer plug
3 measuring adaptor (black), 4 mm round socket to timer plug
storage bag
instruction manual
Technical data
CE Standard Yes
Gross weight 660 g
