Product description

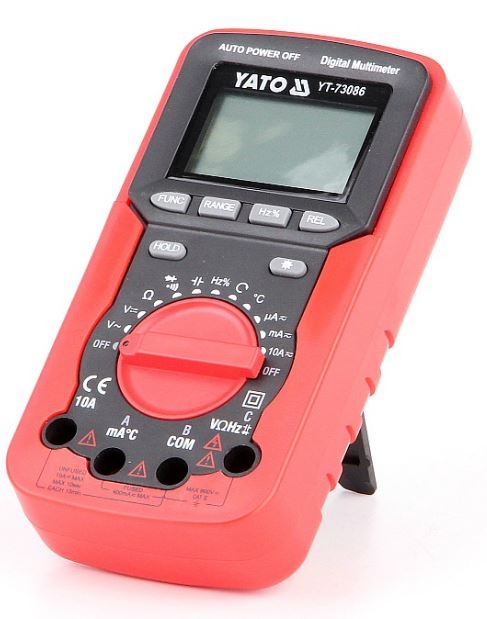

Multimeter YT-73086 can measure DC or AC voltage, DC or AC power, as well as resistance, capacitance, current, diode, temperature measurement and fill factor. In addition, the YT-73086 Multimeter enables phase detection.
Automatic range significantly reduces measurement time. When measuring previously unrecorded values in a conventional universal electric meter, measure from the largest range to the most accurate range - otherwise you risk damaging the multimeter. On the other hand, with the YT-73086, you only need to make one measurement and the meter will automatically find the optimal range.
In addition, the YT-73086 digital meter allows you to measure the temperature, which is particularly useful for detecting faulty components in electrical installations (increased resistance, eg damaged wire, causes component heating).
Illuminated screen of the meter enables operation in low light conditions.
Destination / Application
For performing basic electrical measurements.
Contents of the package

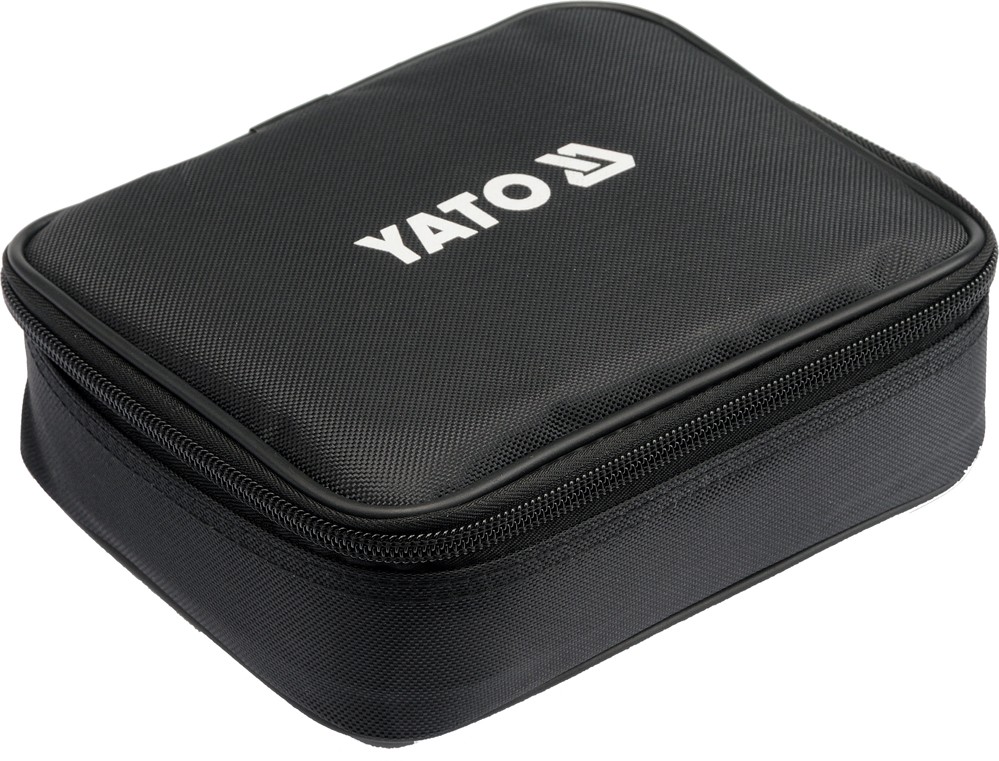

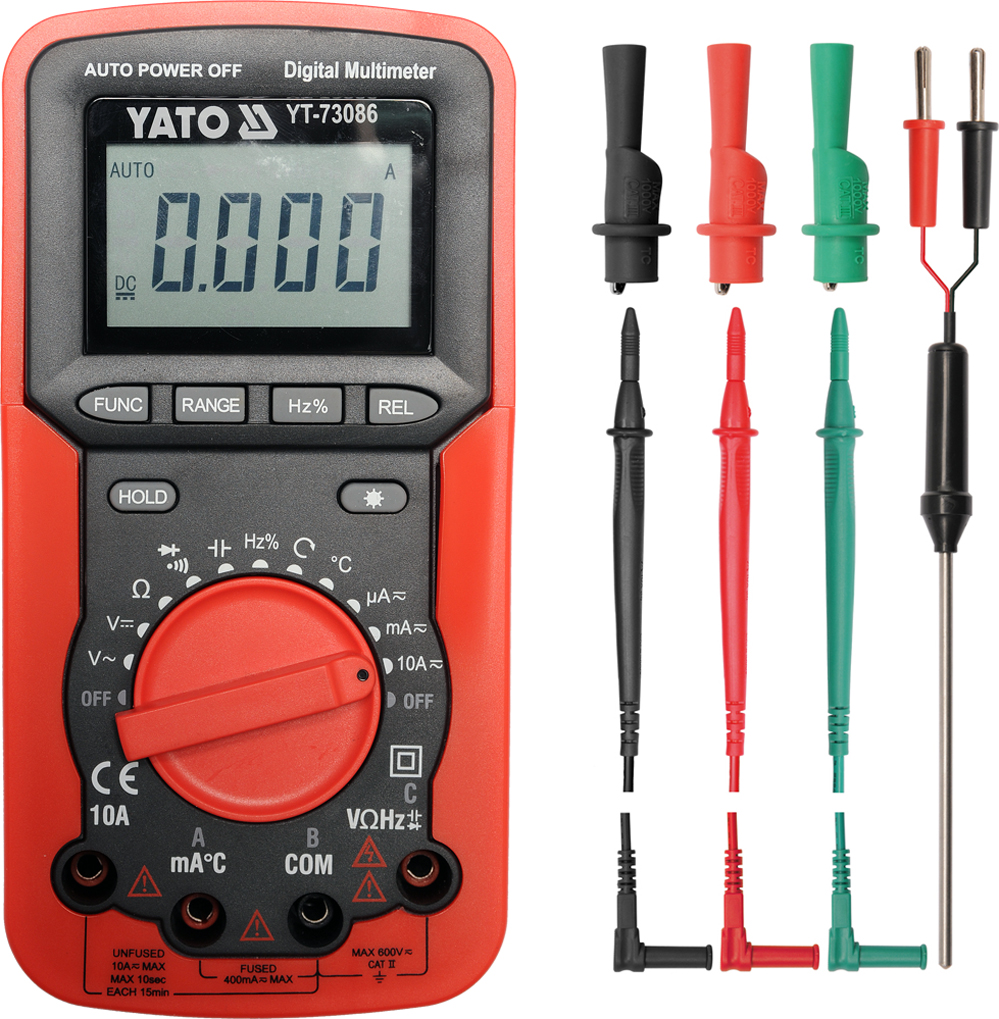

Holster multimeter, protective case with multimeter compartments and accessories, 3 test cables CAT III 600V, 3 "crocodile" CATIII 1000V, thermocouple, instruction manual, warranty card.
Technical data
Index number YT-73086
EAN 5906083730863
Brand Yato
PCS unit
Gross Weight (kg) 0.8130
Master Carton MC 24
Pal 240
Automatic range Yes
Sampling frequency 2-3 times per second
Frequency measurement 0-100kHz ± 1.0%
Measurement of alternating voltage 0-600V ± 1.2%
DC voltage measurement 0-600V ± 1.0%
Capacity measurement 0-100μF ± 8%
Resistance Measurement 0-40 MΩ ± 2.0%
Temperature measurement -20 to 1000 ° C ± 1.8%
Measurement of fill factor 5-95% ± 2%
Alternating current 0-10A ± 3.0%
DC 0-10A ± 2.0%
Circuit continuity test built-in buzzer
1mA diode test, 1.5V
