Description:
Brand:
Electrical meters (multimeters) allow you to measure the voltage and the direct current and alternating current. In addition, the Vorel 81783 Universal Power Meter measures the resistance, capacitance, current and temperature, and enables the diode to be monitored.

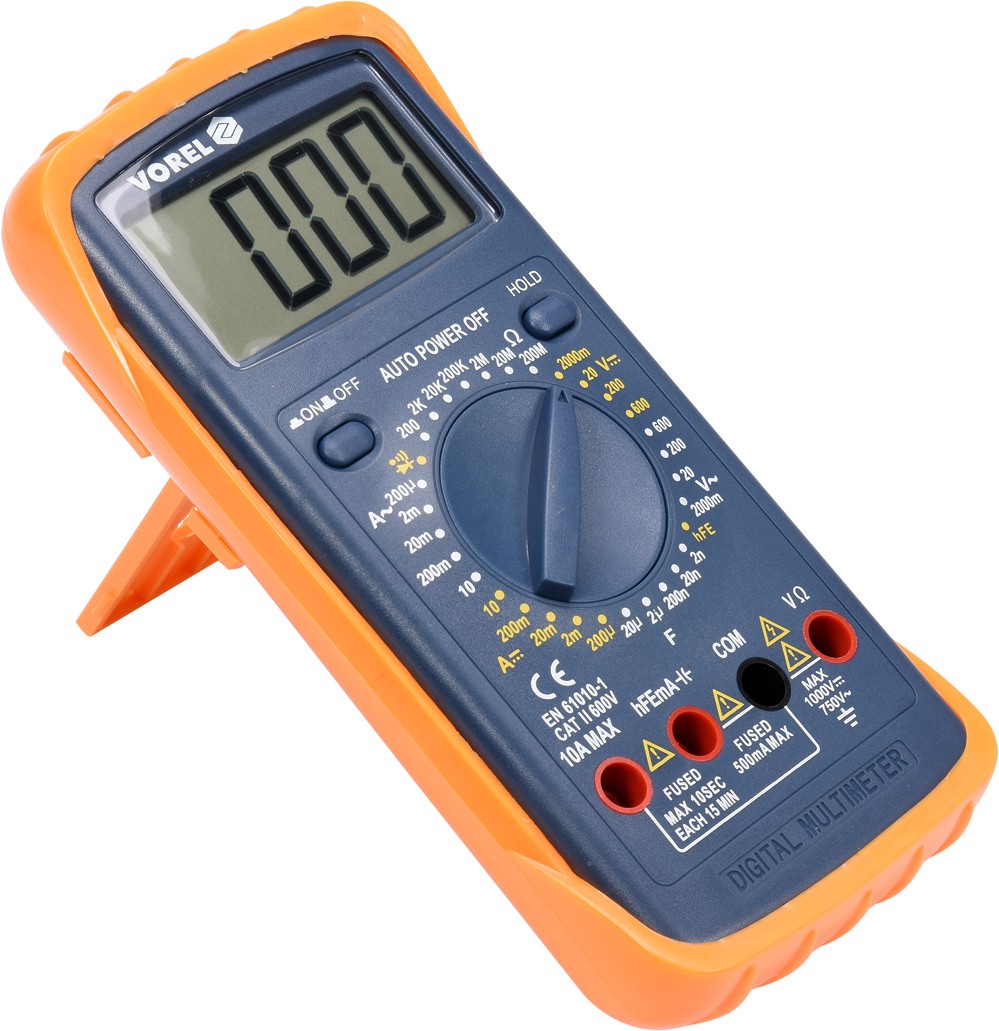

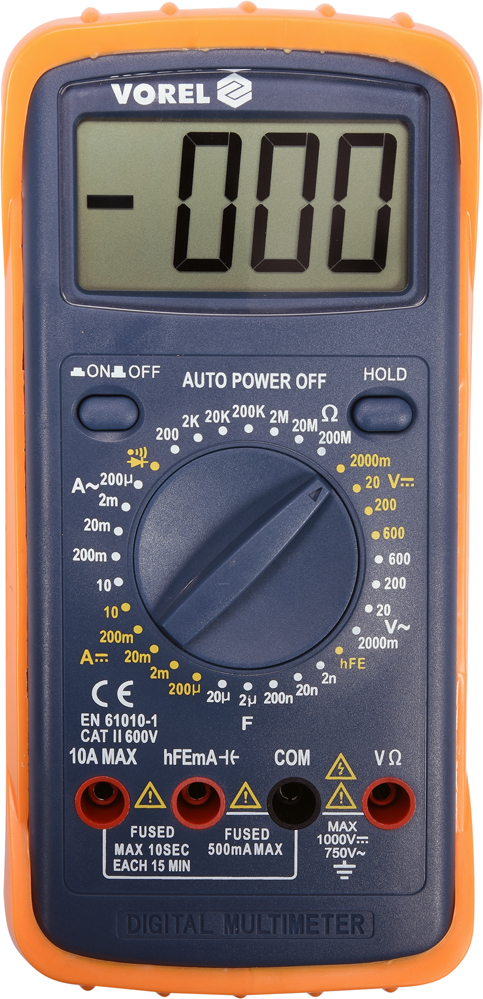

Compact digital multimeter from Vorel. The multimeter has a plastic casing and a silicone sheath that increases resistance to falls and shocks. The housing has a built-in support that allows the meter to be placed. In the housing are installed measuring sockets, and a socket to check the transistors. The instrument has a large liquid crystal display, and a range switch.
Buzzer is useful for inspection of electrical installations - it allows us to easily verify the continuity of the circuit. Auto multimeter off feature saves battery. VOREL 81783 is equipped with so-called. Holster - a rubber case that protects the multimeter from mechanical damage and allows convenient fitting of the test leads for transport. In addition, the integrated stand facilitates hands-free reading.
Contents of the package
Multimeter
Holster
Measuring cables 1000V CAT II 10A
Battery
User manual
Warranty Card
Technical data
Index Number 81783
EAN 5906083817830
Mark Vorel
unit PCS
Gross Weight (kg) 0.6000
Master Carton MC 20
Pal 480

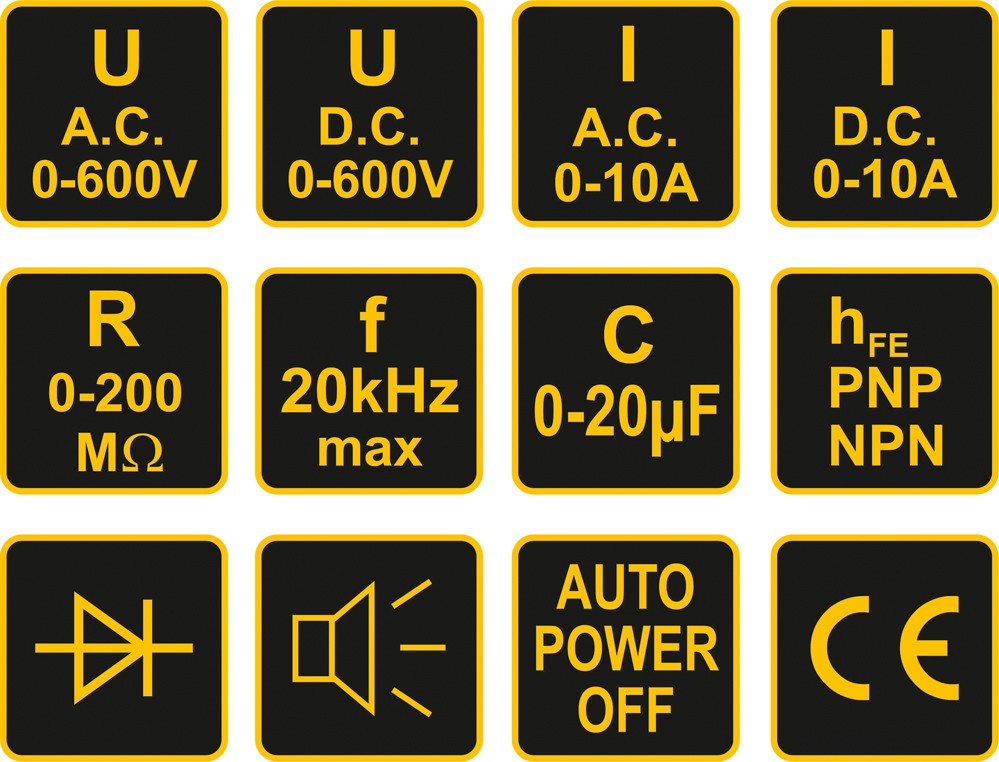

Frequency measurement 20kHz
Measure hFe transistor +
Measurement of alternating voltage 0-600V
DC voltage measurement 0-600V
Capacity measurement 0-20μF ± 2,5%
Measurement resistance 0-200MΩ
Alternating current 0-10A
DC current 0-10A
Circuit continuity test built-in buzzer
1mA diode test, 2.8V
