Description
to loosen and remove the injector's internal fixings
for professional repair of injectors
applicable for Bosch, Denso and Siemens injectors

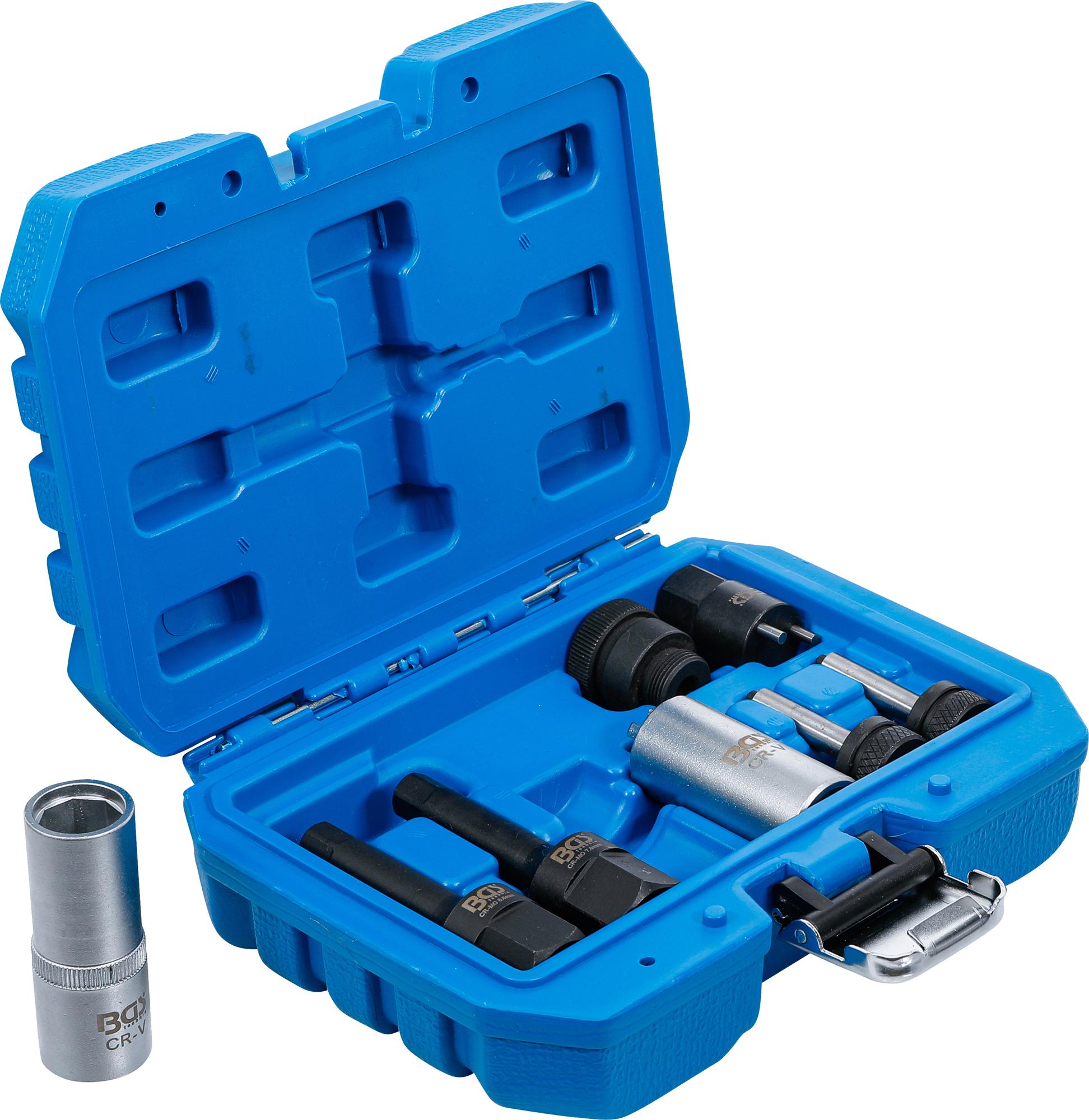

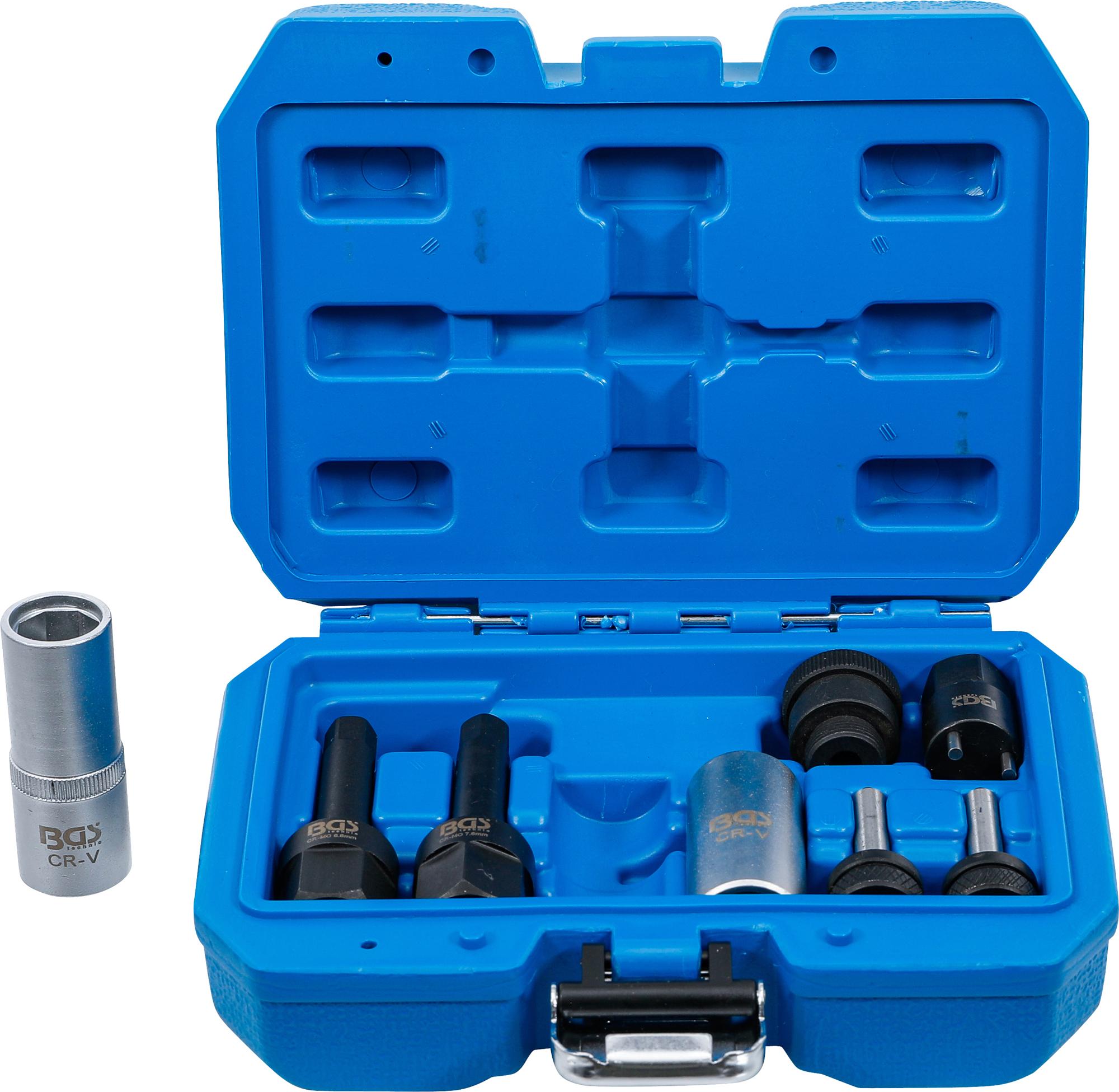

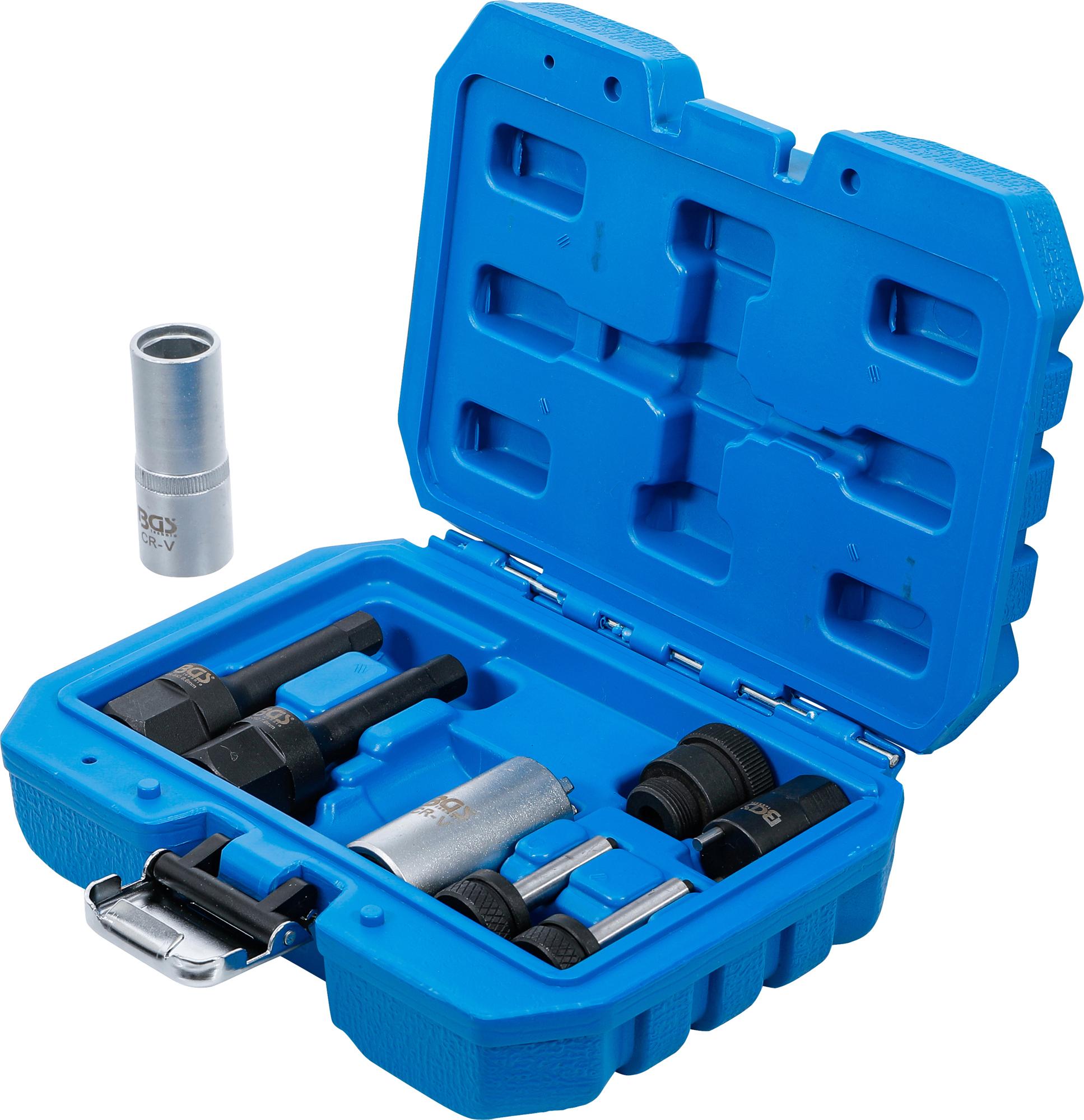

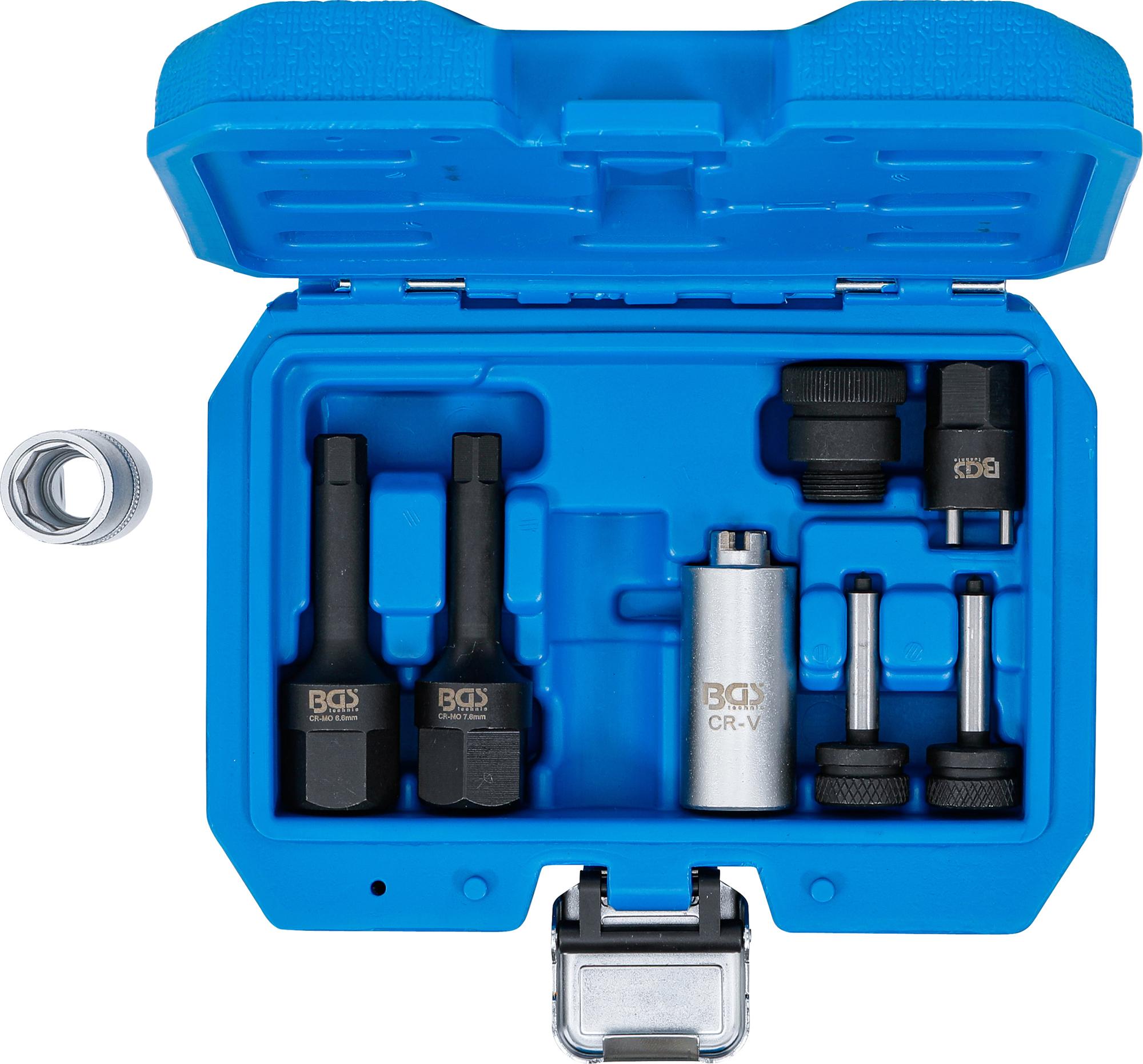

Scope of delivery:
3 Injector ball valve lapping tools incl. centre adaptor
1 bit socket, 12,5 mm (1/2") drive / 21 mm external hexagon, internal hexagon (with hole) 10 mm - Inner Ø (tamperproof) 6,6 mm
1 bit socket, 12,5 mm (1/2") drive / 21 mm external hexagon, internal hexagon (with hole) 10 mm - Inner Ø (tamperproof) 7,6 mm
1 socket, 12,5 mm (1/2") drive, 8-pt. for Bosch-CR-injectors
1 socket, 17 mm external hexagon, with three drift pins for internal valve seats of Denso Common Rail injectors
1 centering device, 12,5 mm (1/2") drive, 4 teeth socket to open the internal split nut of Siemens Common Rail injectors
Technical data
Drive profile Internal square
Drive profile size, metric 12,5
Drive profile size, inch 1/2
Material Chrome Vanadium Steel
Gross weight 780 g
