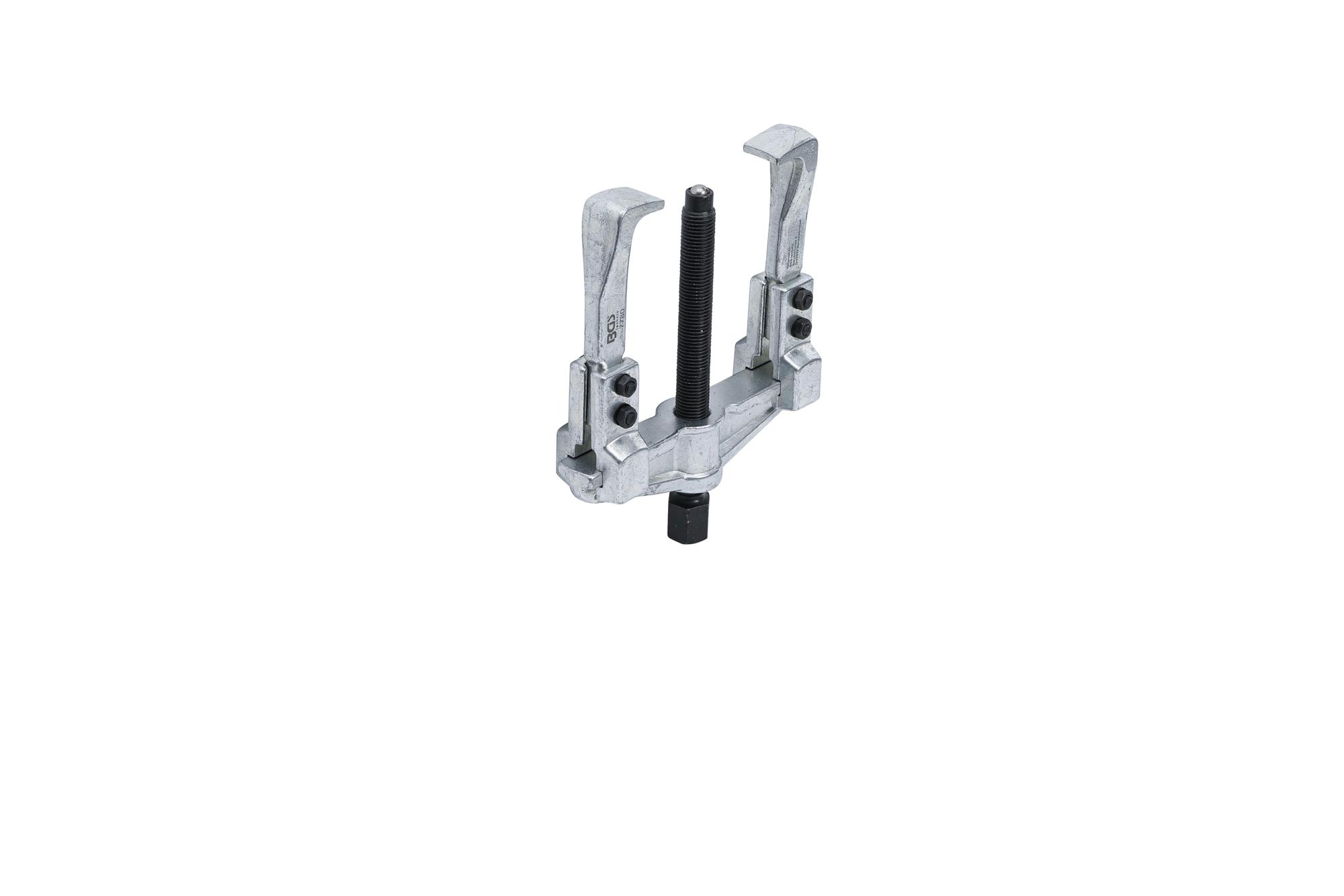

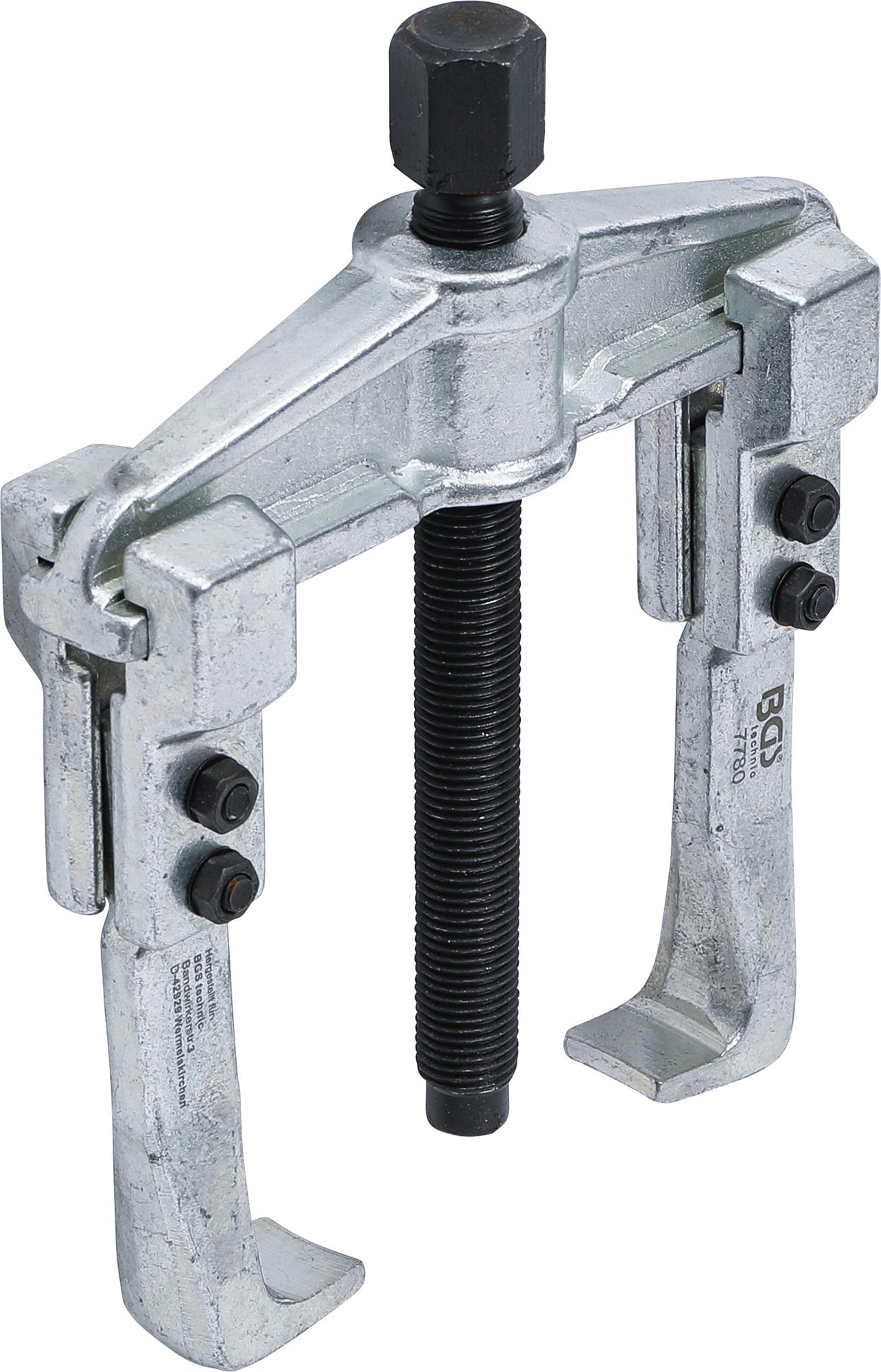

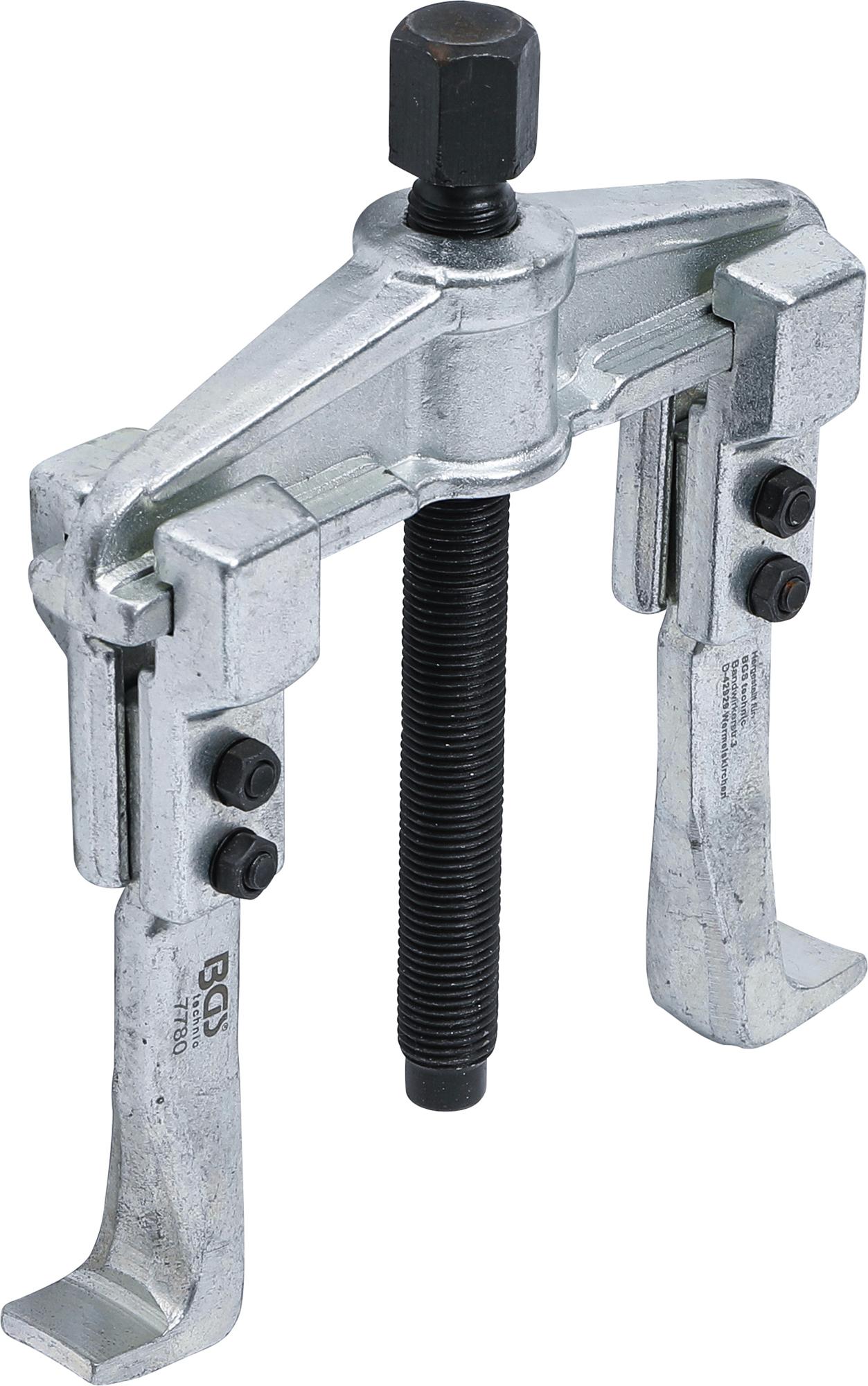

Parallel Puller, fine Thread, 2-legs | 40 - 95 mm (7780)

(1)

Description:

Description
Forged
mechanic puller with standard hooks
parallel puller hooks in every working position, can be used for inside and outside pulling via detachable and adjustable puller hooks
Technical data
Clamping depth 100 mm
Material Special steel
Hooked footh 12,5 mm
Hook length 28 mm
Min. clamping width 40 mm
Spindle length 150 mm
Hex drive size 17 mm
Max. clamping width 95 mm
Hook foot thickness at the top 4 mm
Gross weight 1110 g
