Description:
Brand:
Product description

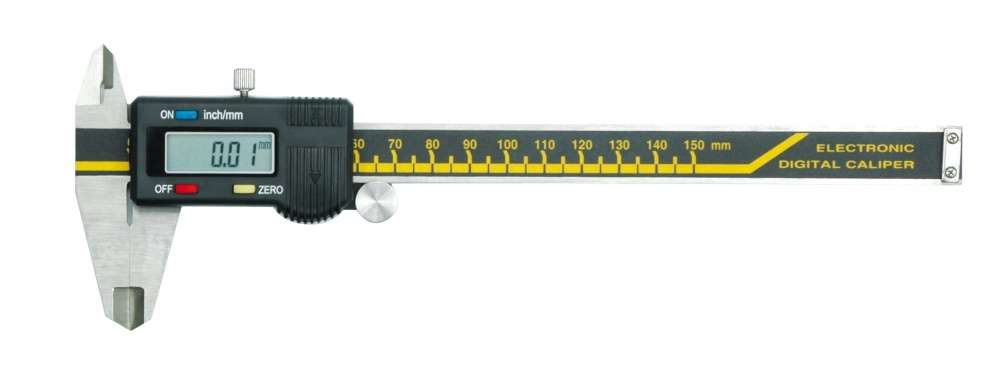

Vorel 15240 electronic caliper with measuring range from 0 to 150 mm and accuracy (+/-) 0,02 mm. Equipped with a 0.01 mm / 0.005 inch LCD liquid crystal display. The on-screen switch allows you to measure both metric and inch. Powered by one 1.55 V silver battery, type SR44. The whole is placed in a sturdy and handy package. Caliper for external and internal measurements and depths. The battery socket contains a slot for connecting the caliper to the computer to collect and analyze the collected data.
Destination / Application
Caliper for measurements of external and internal surfaces and depth. Works with computer.
How to use
Loosen the retaining screw.
Turn on the device by pressing the "ON" button.
Select the measuring unit by pressing the "inn / mm" button.
Whenever this button is pressed, the measurement result will be alternated in inches or millimeters.
Measure the normal measuring pressure on the slider to tighten the measuring jaws.
Then press the "ZERO" button to reset the display.

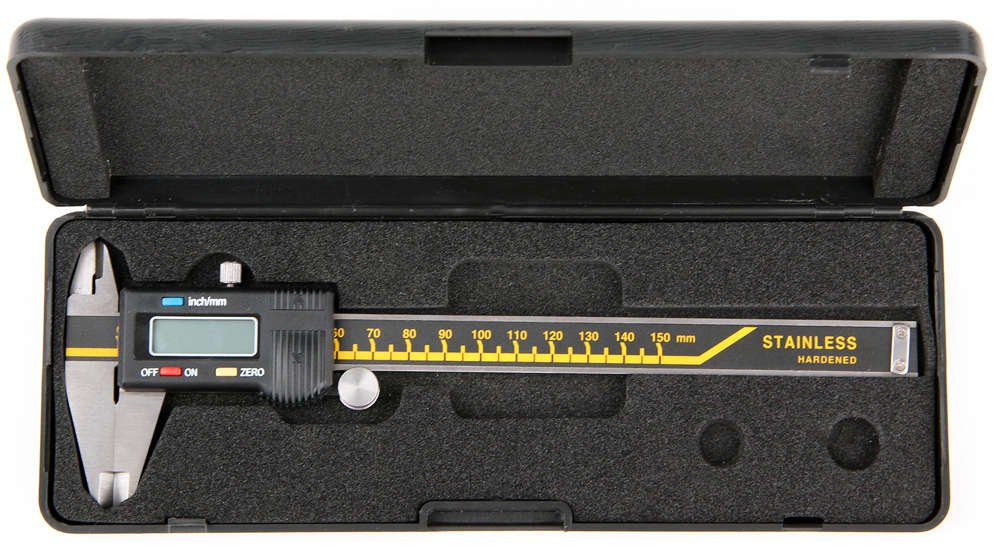

Contents of the package
Caliper,
Battery,
User manual,
Warranty Card,
Box.
Technical data
Index Number 15240
EAN 5906083152405
Marka Vorel
PCS unit
Gross Weight (kg) 0.4000
Master Carton MC 50
Inner Box IB 10
Pal 900
Length [mm] 150
Accuracy [mm] 0,02
Type of electronic reading, possibility to work with computer
