Product description
A modern system for leveling tiles, which very quickly and easily helps to arrange perfectly tiles saving time and eliminating inaccuracies of the surface.
It consists of a set of breakable clips and reusable wedges, made of high quality plastic.
Advantages of using the VOREL system:
- replaces narrow crosses
- prevents movement during installation and adhesive bonding
- accelerates the laying of tiles with ideal joints and joints
- no need for additional tools
- it can be used on walls and floors
- easy to assemble at every skill level
Purpose / use
For ceramic, gres, rectified floor and wall tiles of various sizes and thicknesses.
• Is used for leveling tiles,
• Significantly shortens work time and increases productivity.
• Stabilizes the position
• Thanks to the system, an even surface is obtained without overly leveling.
• There is no need to use additional tools, it does not require effort - it is easy to assemble at every skill level.
• proposed to people professionally laying tiles, as well as those without experience.
The minimum fugue when laying tiles is 1.5 mm, while using spacers, we can get the expected width.
Maximum tile thickness at which the system can be used: 14 mm

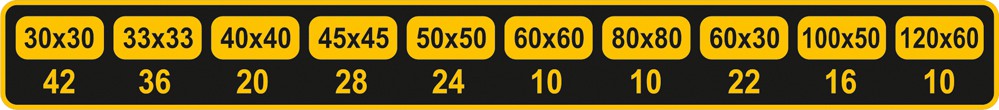

Number of wedges and clips per 1m2 depending on the size of the tile:
30 cm x 30 cm - 42 pcs
33 cm x 33 cm - 36 items
40 cm x 40 cm - 20 items
45 cm x 45 cm - 28 items
50 cm x 50 cm - 24 items
60 cm x 60 cm - 10 items
80 cm x 80 cm - 10 items
60 cm x 30 cm - 22 items
100 cm x 50 cm - 16 items
120 cm x 60 cm - 10 items

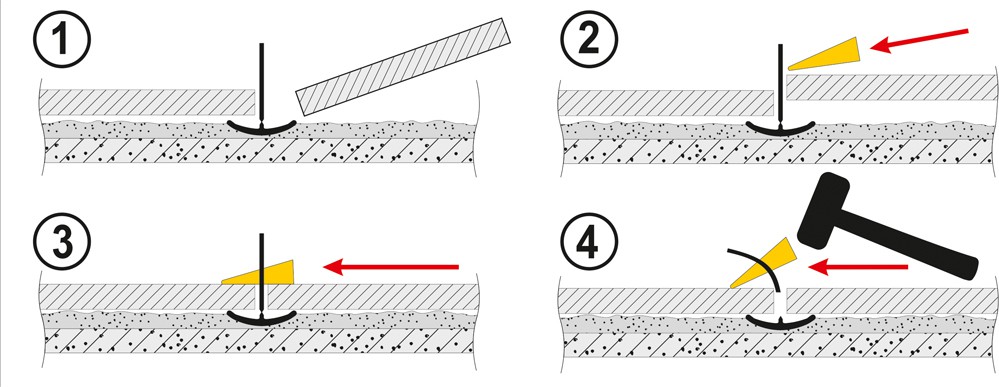

Usage
1. After applying the glue, insert the clips under the tile so that 2 clips are placed on each side of the tile
2. Feed the next clip plate.
3. Insert the wedge into the hole of the clip and press down to align the tiles with one another.
4. After the mortar (glue) has set to the glaze, remove the clip by lightly hitting it.
Contents of the package
wedges - 100 pieces
clips - 300 pieces
Technical data
Index number 04692
EAN 5906083046926
Brand Vorel
Gross weight (kg) 1.4000
Number [pcs] 300 clips + 100 wedges
Max. Plate thickness [mm] 14
Thickness [mm] 1.5
Application of glaze
