Description
total length of central bolt is 290 mm
see BGS 7742 for separate splitting knife

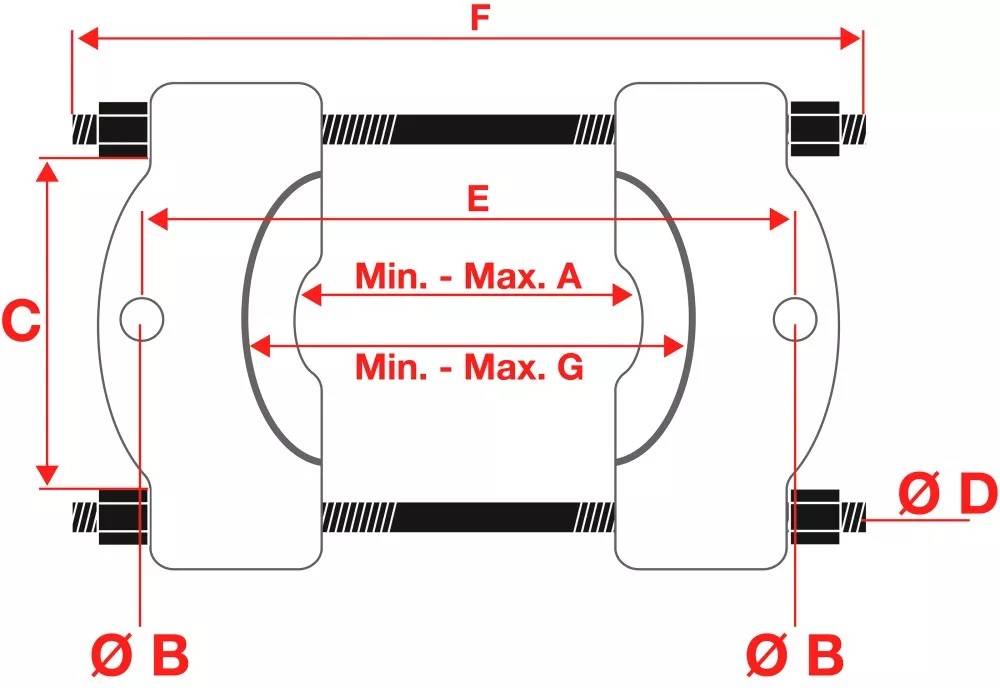

clamping width (A) min. / max. in mm: min. 13 mm / max. 70 mm
puller bolt receiving thread (B): 1/2" x 13 UNC
clamping bolt distance (C) in mm: 113 mm
camping bolt thread (D): 1/2" x 13 UNC
puller bolt distance (E) min. / max. in mm: min. 90 mm / max. 147 mm
clamping bolt length (F): 166 mm
splitting knife base (G) min. / max. in mm: min. 57 mm / max. 114 mm
Technical data
Gross weight 7500 g
