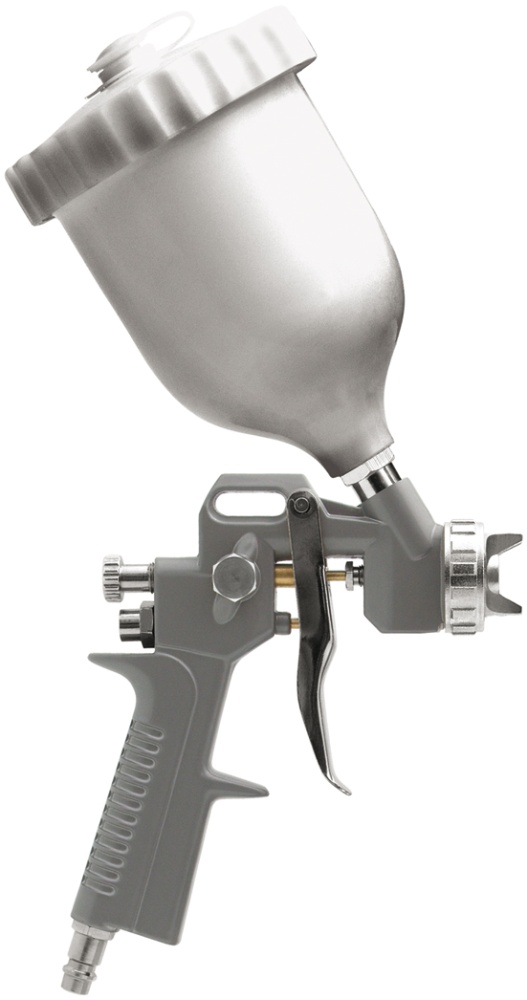

SPRAY GUN W. Plastic CUP 0.6CM3 (81618)

9 (3)

Price show only for registered users

Item code: 81618

Description:

Brand:
VOREL
Product description
Spray gun is used for painting work. Compressed air is essential. The paint from the gun tank and the compressed air supplied to the gun form a mixture of lacquer and air particles at the nozzle outlet of the gun.

Getting started
Use a flat spanner to tighten the nozzle. Check the tightness and reliability of the compressed air supply connections. Blow air hose, before connecting it to the installation. Before using the gun make sure that it is properly cleaned and maintained. Ensure that the container with the coating material has been sealed in a way that ensures adequate sealing.

Adjustable spray jet width
Changing the width and shape of the spray jet can be achieved by rotating the air nozzle. The shape of the jet can be smoothly adjusted from flat to round depending on the needs. The amount of coating material supplied to the air stream is determined by the volume control knob. The spray adjustment knob adjusts the intensity of the coating material to the air. It is advisable to set the mix stream so as to obtain as small particles of coating material as possible, to provide a better spreading of the coating material on the surface.

Working with a gun
Use a gun to maintain the distance between the gun outlet and the covered surface in the range of 10 to 15 cm. Try to keep the gun outlet perpendicular to the surface to be covered. Avoid curving movements, resulting in uneven distribution of the coating material. It is recommended to apply several thin layers, rather than one thick.

Airflow adjustment Depending on the type of coating material, the compressed air quantity must be selected by adjusting the air pressure control knob. If the gun is not equipped with a pressure regulator, adjust the pressure in a pneumatic system, eg with a regulator.

Replacement of the nozzle
Be sure to replace the entire nozzle assembly. The kit includes a coating material nozzle, spigot and air nozzle.

Seal of the needle
Check the sealing of the needle seal during operation. In case of significant wear, replace the gasket during the periodic inspection of the gun using a wrench to remove the seal assembly

Cleaning and maintenance
After finishing work, disconnect the gun from the compressed air system and empty the tool tank from the remaining coating material. Thoroughly clean the container from the residue of the coating material. Thoroughly clean the entire transmission line of the coating material. Inaccurate cleaning will reduce the flow characteristics of the coating material. Clean the air nozzle with a brush dipped in a solvent. Never immerse the entire gun in a solvent. Never clean clogged openings with hard objects, as slight internal damage can adversely affect the performance of the spray jet. After washing the gun, apply a small amount of lubricant to the moving parts of the seal. Tighten the coating material to such an extent to avoid leaks while ensuring a smooth movement of the needle.

Technical data
Index number 81618
EAN 5906083816185
Marka Vorel
PCS unit
Gross weight (kg) 0.6750
Master Carton MC 20
Pal 200
Pressure [bar] 3.5-5
Packing box color box
Nozzle size [mm] 1.5
Size of the quick coupler [inch] 1/4 "
Yield [l / min] 280-450
Capacity [L] 0,7
