Hidraulinis rinkinys nešiojamas | 10 ton (80412)

10 (2)

Jeigu norite matyti prekių kainas, reikia prisiregistruoti

Prekės kodas: 80412

Aprašymas:

Gamintojas:
VOREL
Product description
Hydraulic spreader is designed for workshop work and can be used in assembly and tinsmith works, for works requiring the use of considerable static forces.
The device is designed for lifting, stretching, spreading, bending, straightening and pulling.

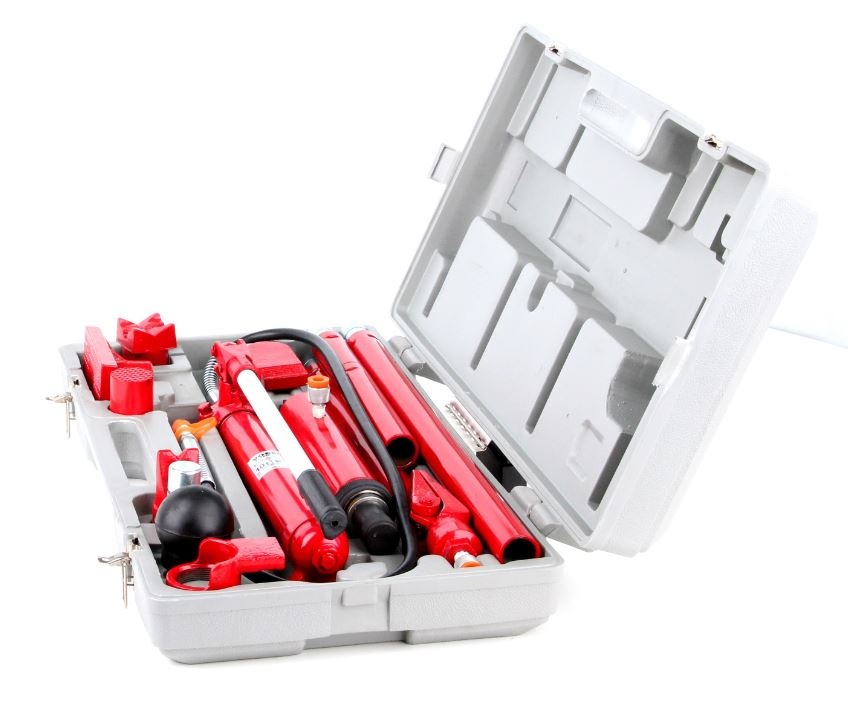

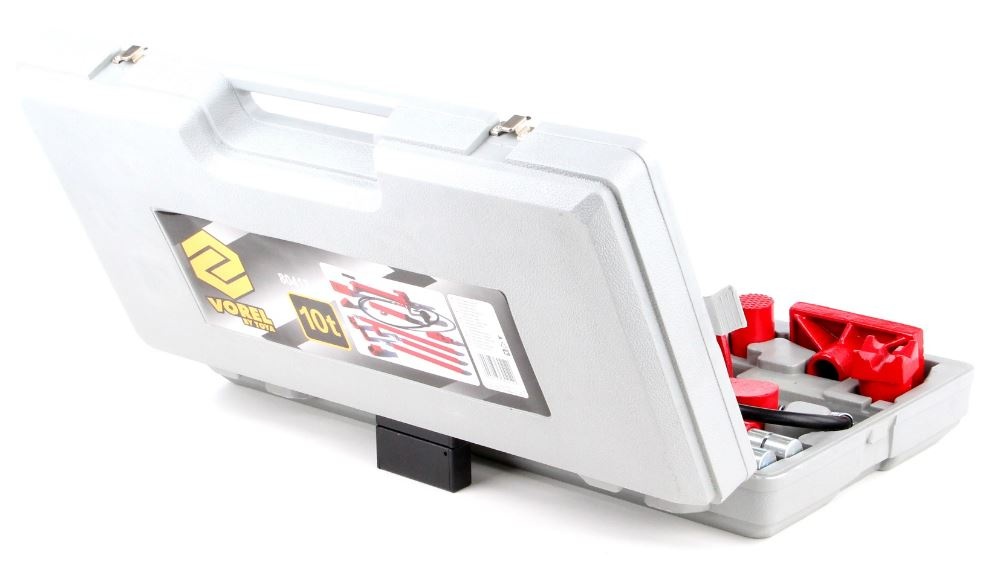

The set is placed in a transport case

Weight [kg] - 35.4
Working pressure [bar] - 620
Connection thread size ["] - 13 / 16-20UNEF
Maximum load [thous. kg] - 10
Cylinder piston stroke [mm] - 150
Purpose / use
The spreader can be used in assembly and tinsmith works to carry out works requiring the use of significant static forces.
Usage
Installation and use of the hydraulic system:
- Connect the pump hose to the actuator connector by screwing the union nut onto the thread. Make sure that the nut has been correctly
tightened.
- Close the drain valve by turning it clockwise.
- By moving the pump lever up and down, create pressure in it. After several movements, the actuator will start working.
To relieve the pressure in the pump, turn the valve counterclockwise.
When the drain valve is opened, the actuator will automatically start to return to the rest position.
Do not disassemble the hydraulic system under pressure.
The pump can be used in any position, both vertical and horizontal. With the vertical position of the pump, the end of the hose must always point downwards.

Checking the oil level:
To check the oil level in the pump, set it to the vertical position with the hose pointing down. Open the drain valve. Unscrew the breather valve and remove the dipstick and read off the oil level. If necessary, adjust the oil level so that the oil covers the entire flat surface of the indicator. The device has been factory-filled with hydraulic oil. Use only the correct type of oil. It is recommended to use hydraulic oil HYDROL with the symbol L-HL-46.

Bleeding the pump:
To bleed the pump's hydraulic system, set the pump in a vertical position with the hose pointing down. open the
drain valve. Unscrew the breather valve and remove the dipstick. Make a few full moves
pump lever. Close the drain valve, install the oil level indicator and close the breather valve.

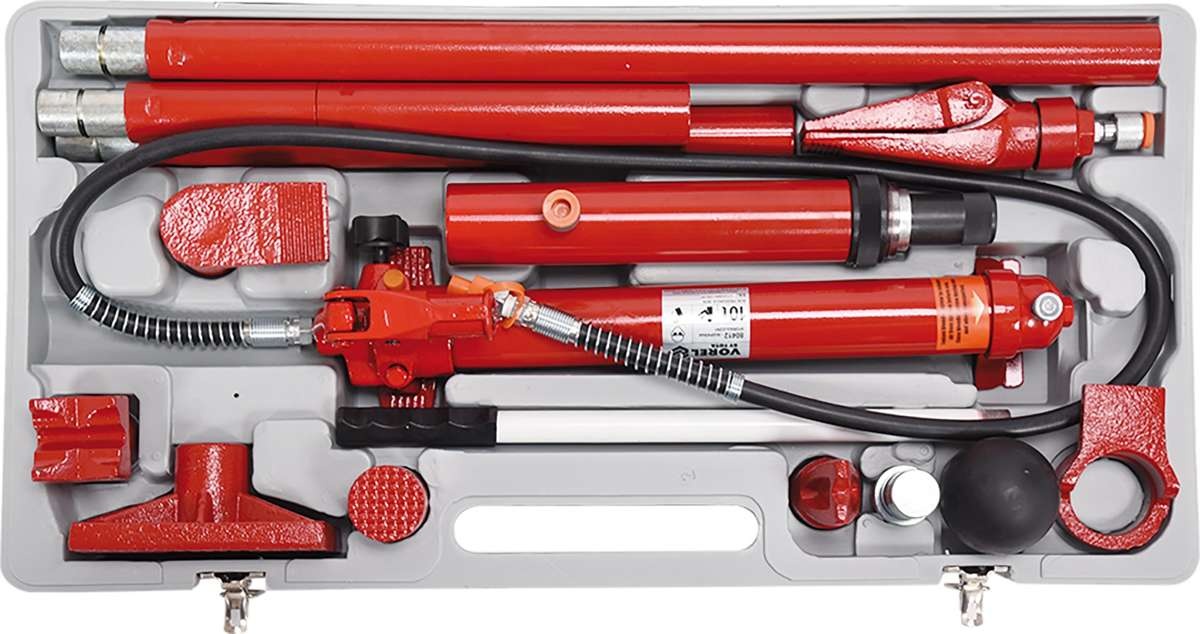

Contents of the package
- hydraulic pump
- actuator
- extension pipes 4 pcs
- jaws expanding
- round cap
- flat socket
- Actuator hitch
- piston hook
- crevice nozzle
- V type cap
- rubber cap
- "male" connector
Technical data
Index number 80412
EAN 5906083804120
Brand Vorel
PCS unit
Gross weight (kg) 36.0000
Master Carton MC 1
Pal 15
Strength [kg] 10,000
Number of items [pcs] 12
