Description
for drilling out broken or torn off M8 and M10 studs and bolts
suitable for using on screw connections of exhaust manifolds, intake manifolds, cylinder heads, gearboxes, differentials, etc.
also usable on engines and housings on passenger vehicles, motorcycles and commercial vehicles

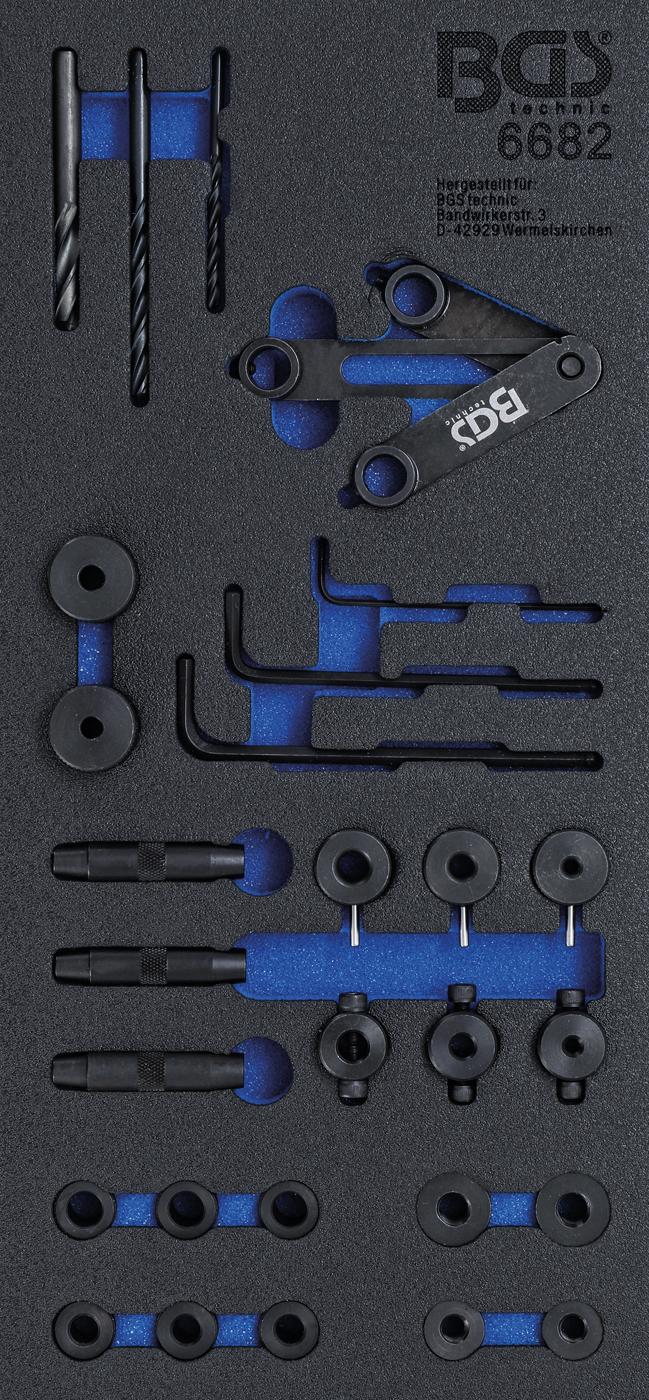

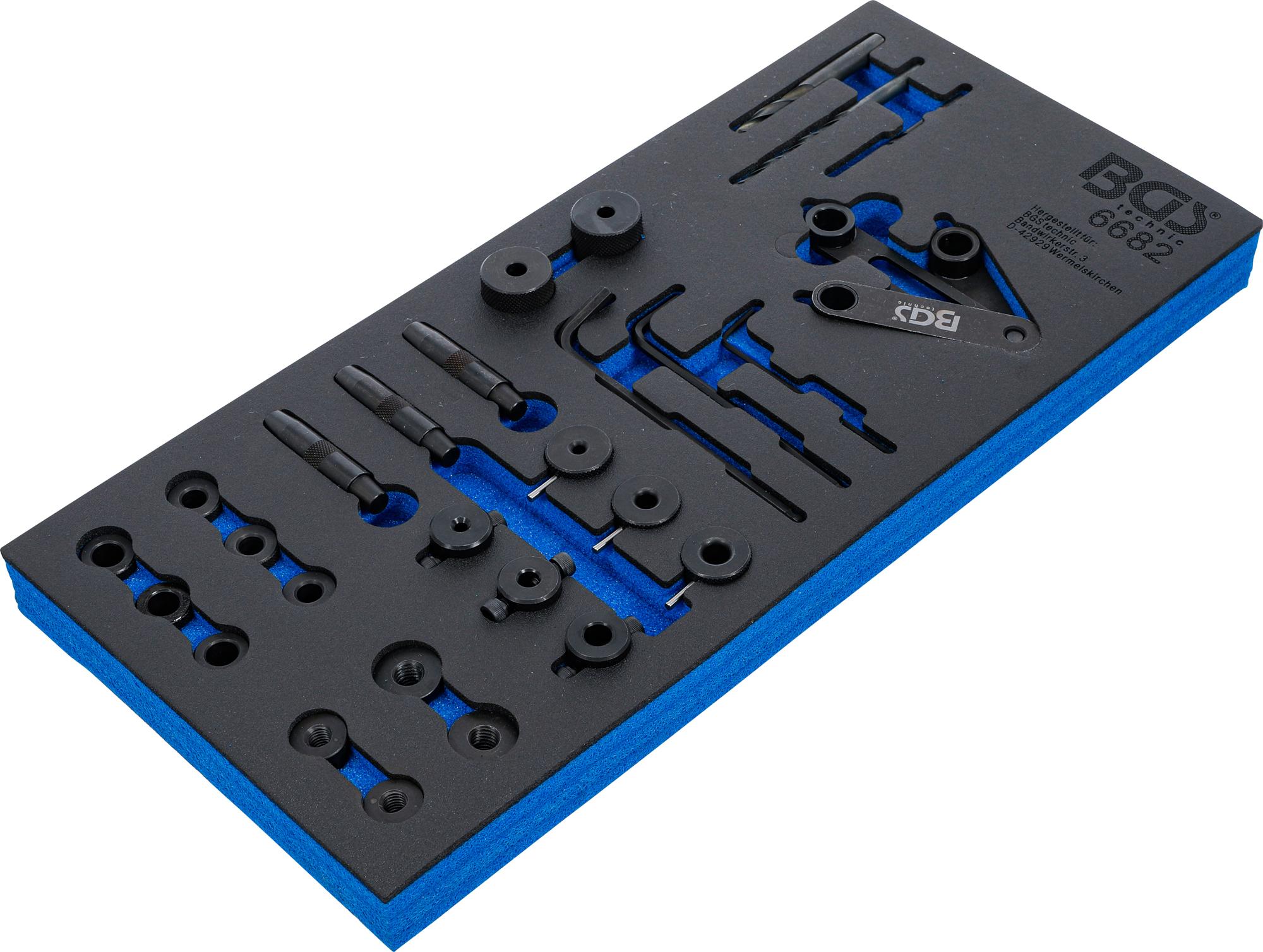

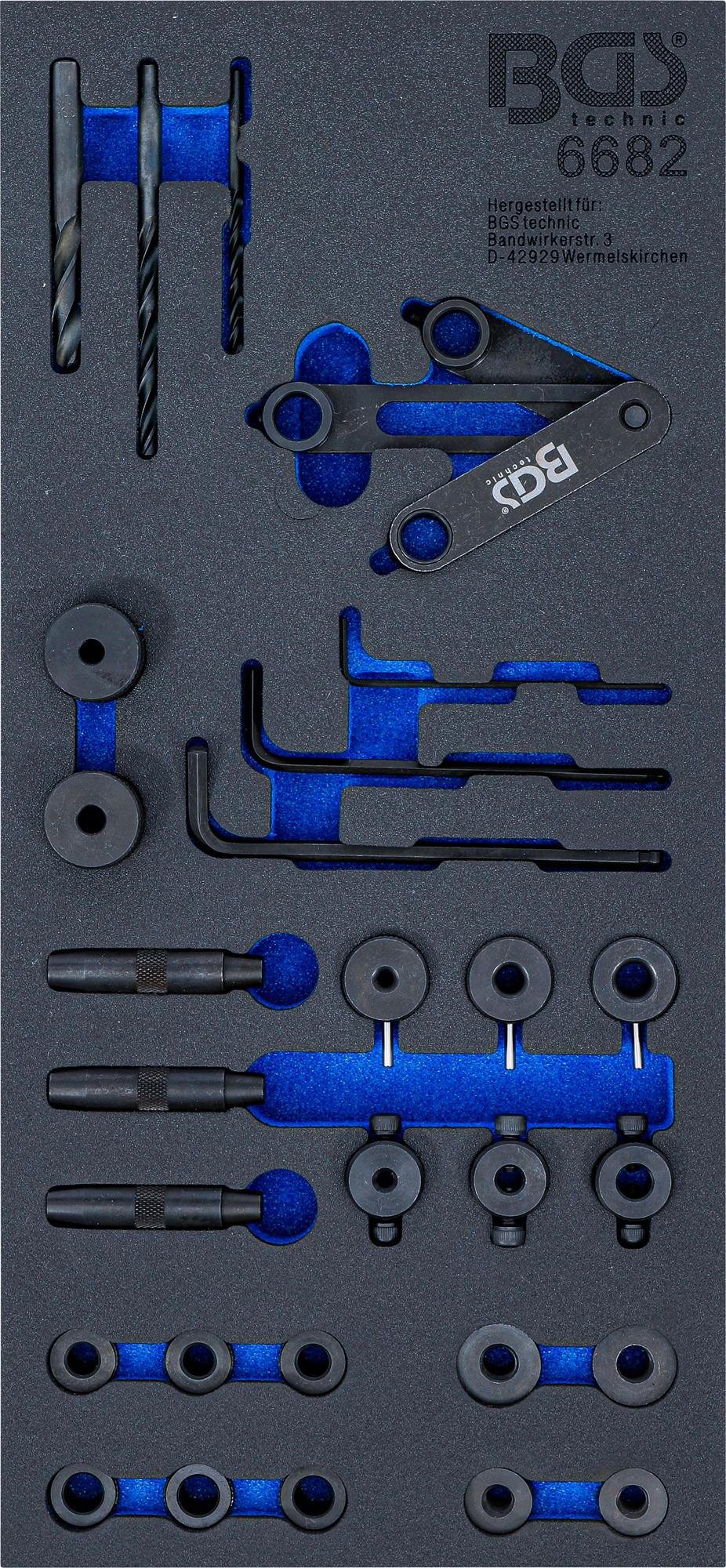

scope of delivery:
1 3-arm drilling jig, adjustable
1 guide bushing for 4 mm drill
1 guide bushing for 6.5 mm drill
1 guide bushing for 8.5 mm drill
1 drill stop for 4 mm drill
1 drill stop for 6.5 mm drill
1 drill stop for 8.5 mm drill
2 hexagon nuts M10 x 1.5
2 hexagon nuts M8 x 1.25
1 alignment sleeve M8
1 alignment sleeve M10
1 HSS drill 4 mm
1 HSS drill 8.5 mm
1 HSS drill 6.5 mm
3 guide sleeves M8
3 guide sleeves M10
3 alignment pins, conical on both sides
1 internal hexagon key 2 mm
1 internal hexagon key 4 mm
1 internal hexagon key 5 mm
Technical data
Gross weight 1660 g
