Description

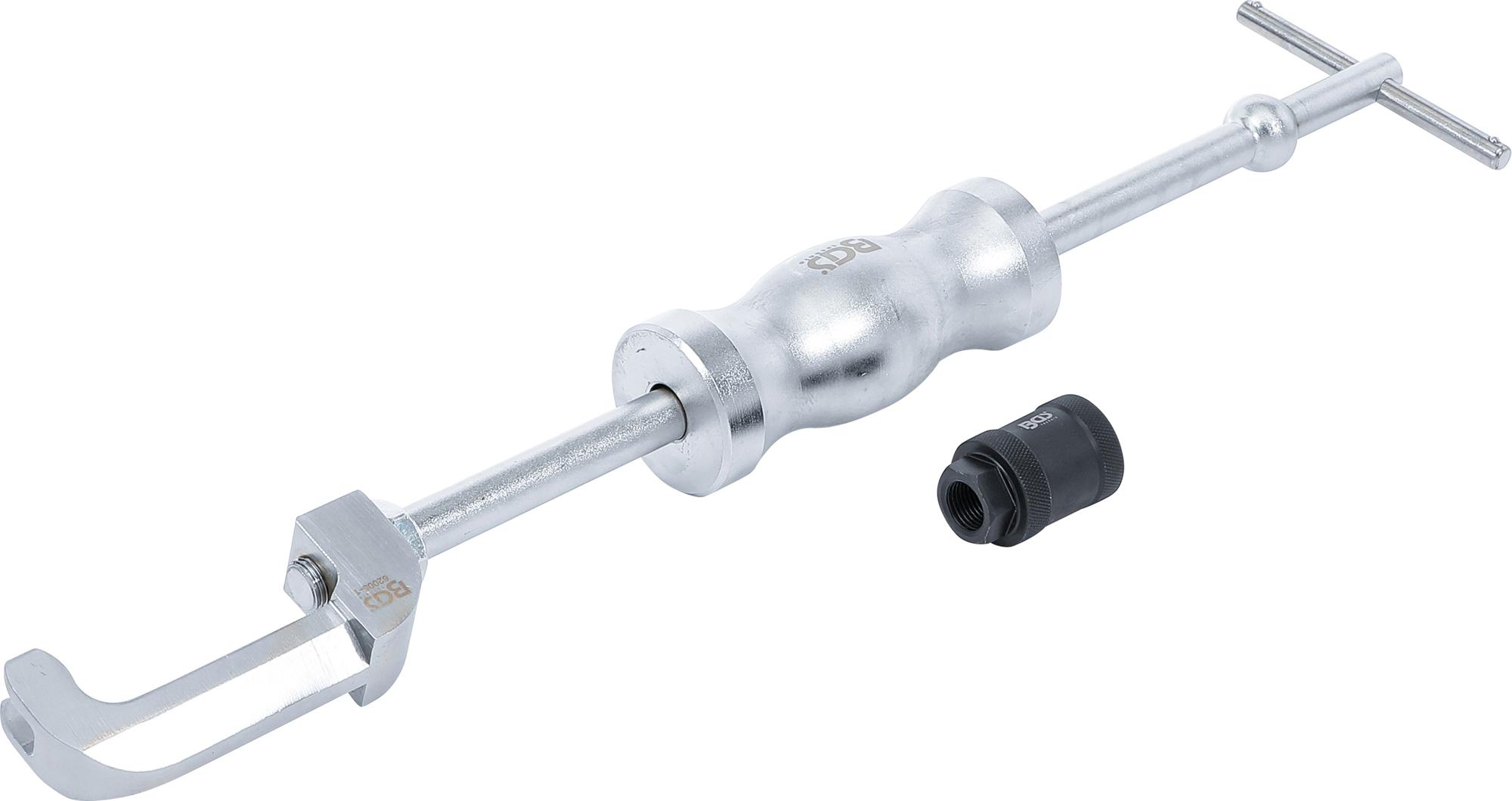

suitable for Mercedes-Benz CDI engines, series OM611, OM612, OM613

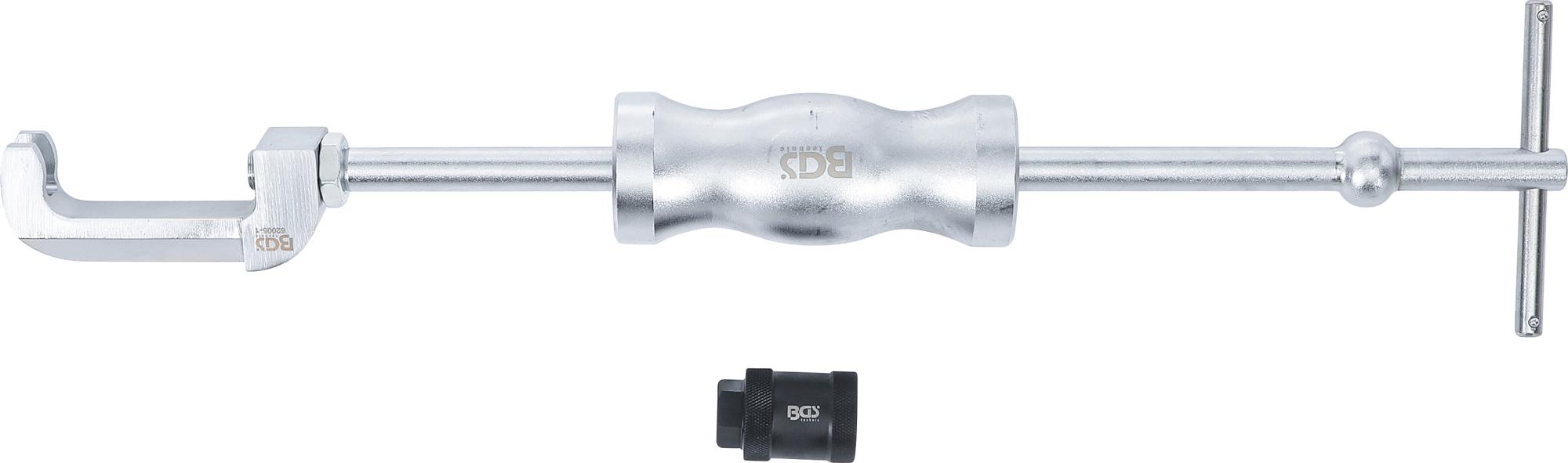

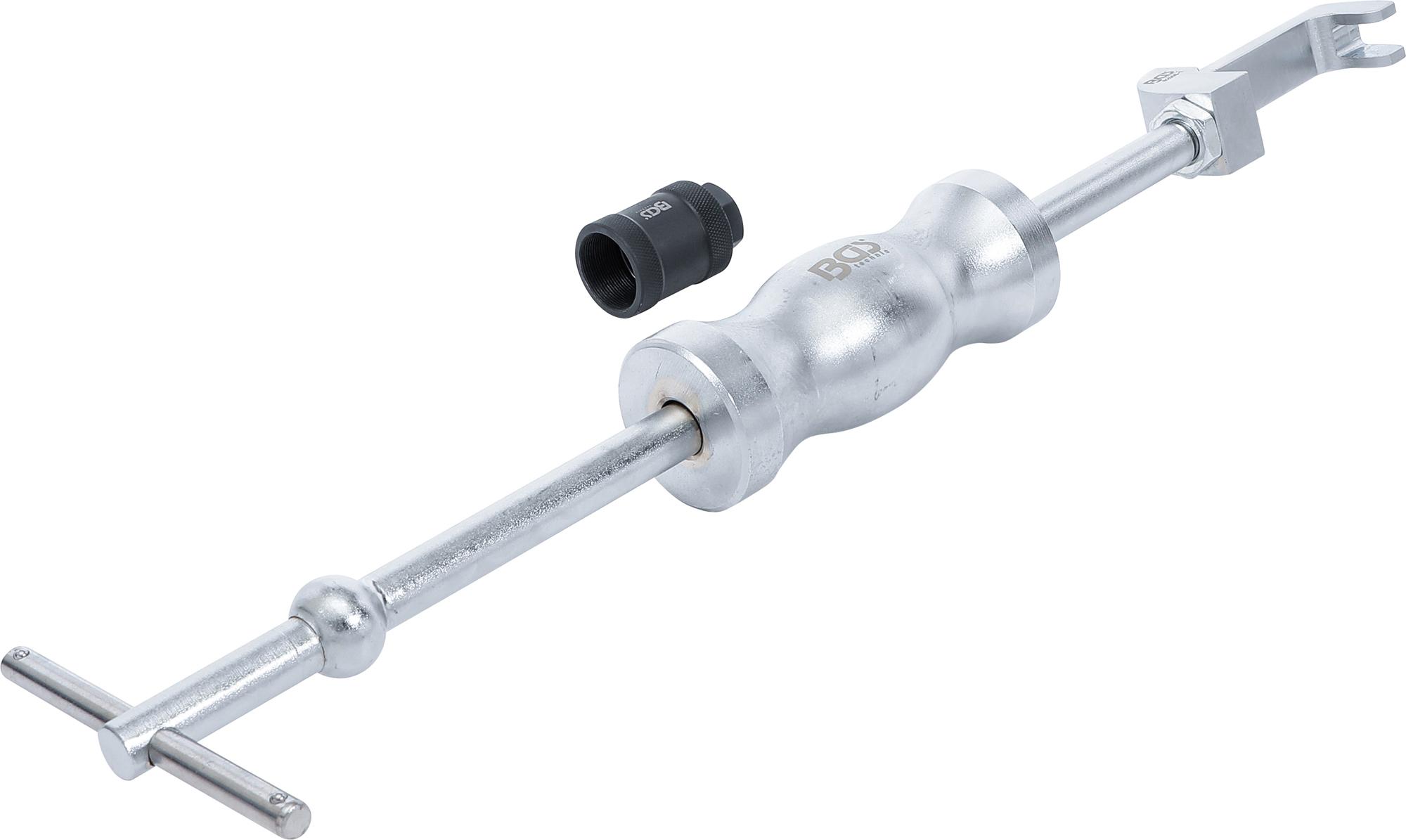

sliding hammer (1.85 kg, length: 470 mm)
thread adaptor for mounting on the injector internal thread M27 x 1.0 (injector side), internal thread M16 x 1.5 (sliding hammer side)
extractor claw: M16 x 1.5 female thread (sliding hammer side), 12.2 mm claw distance / 15.5 mm claw height, 75 mm distance from connector of sliding hammer to extractor claw, 113 mm total height of extractor claw
total length with threaded adaptor 500 mm
total length with 570 mm claw
Technical data
Gross weight 4010 g
