Description

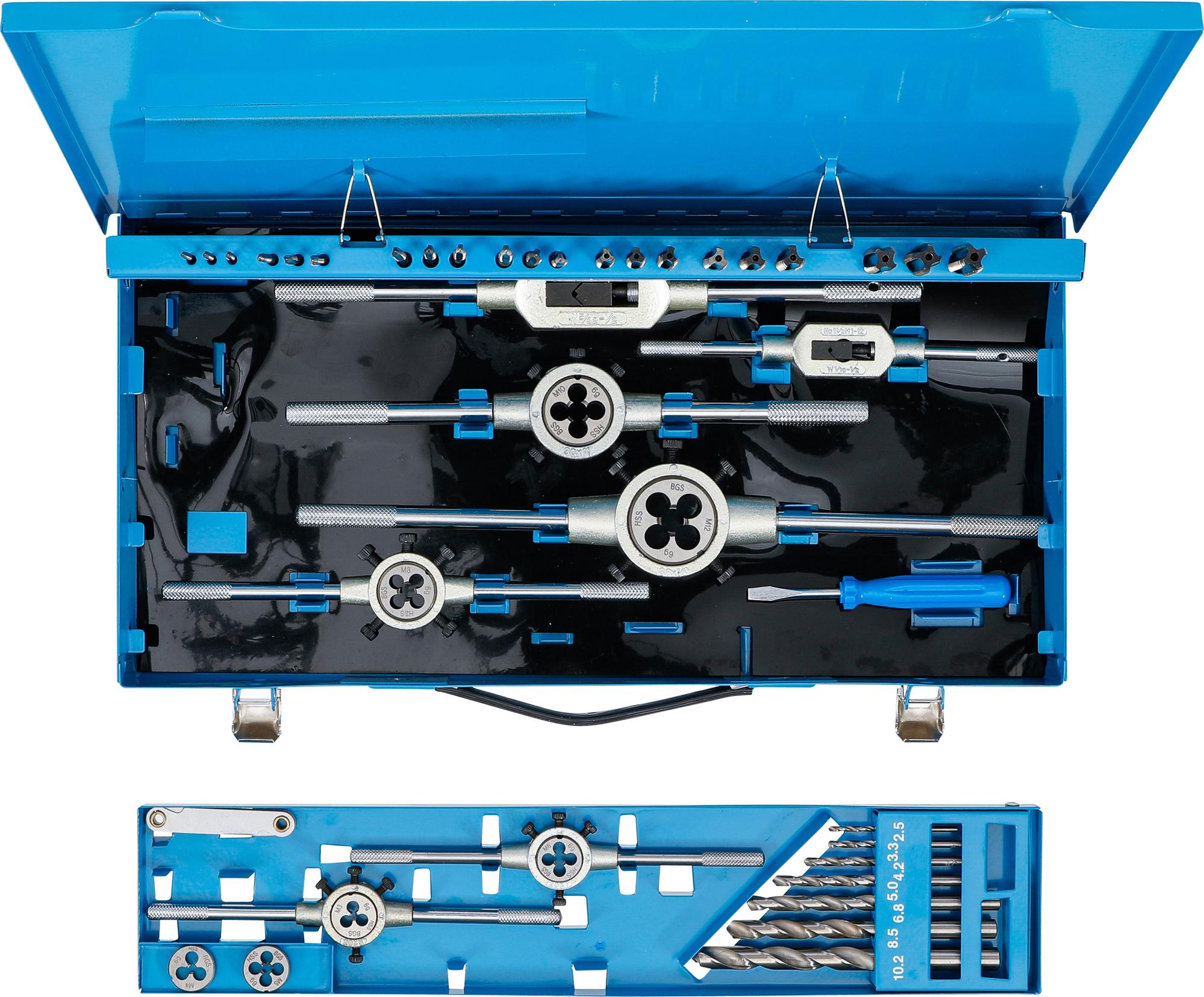

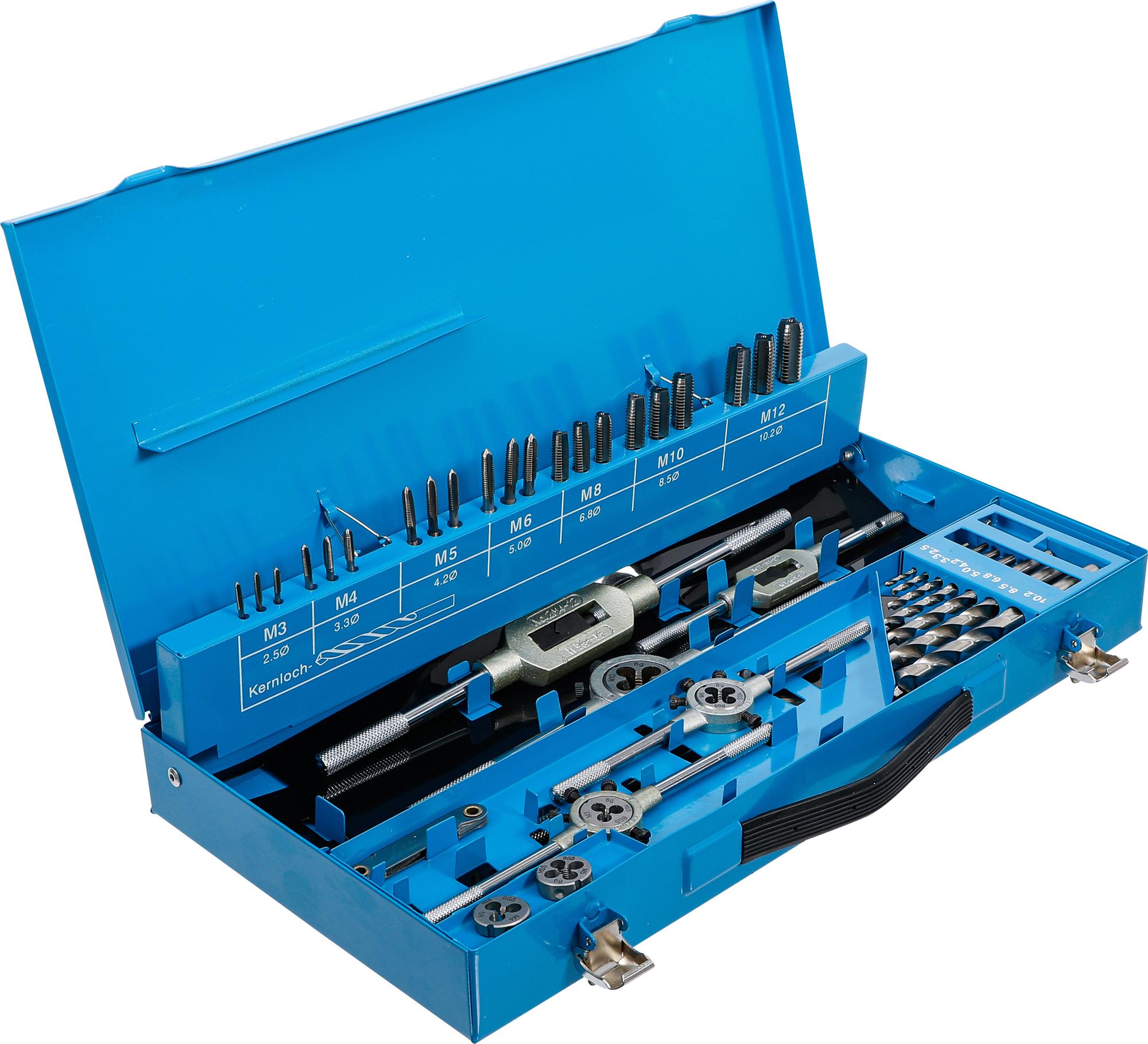

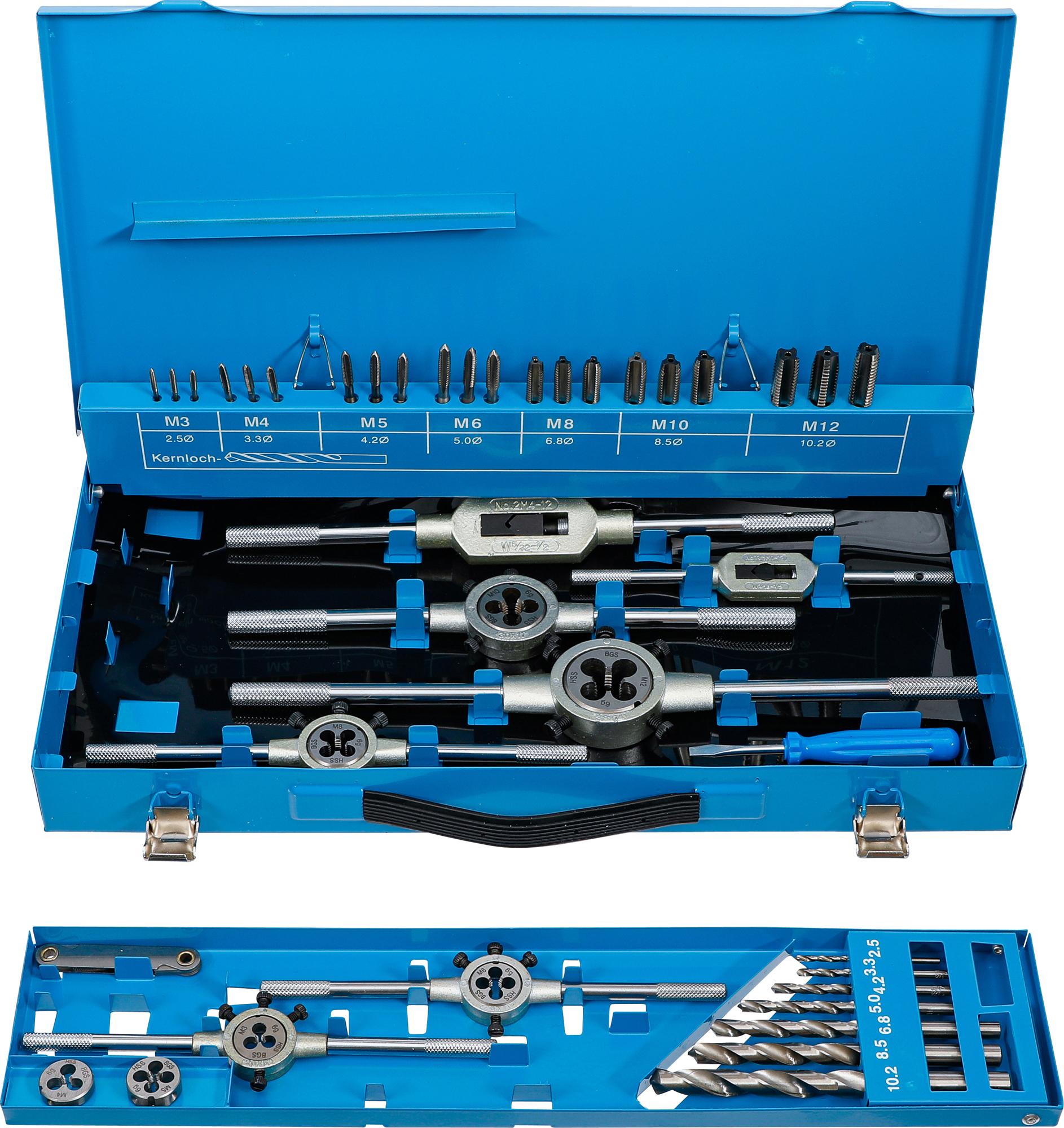

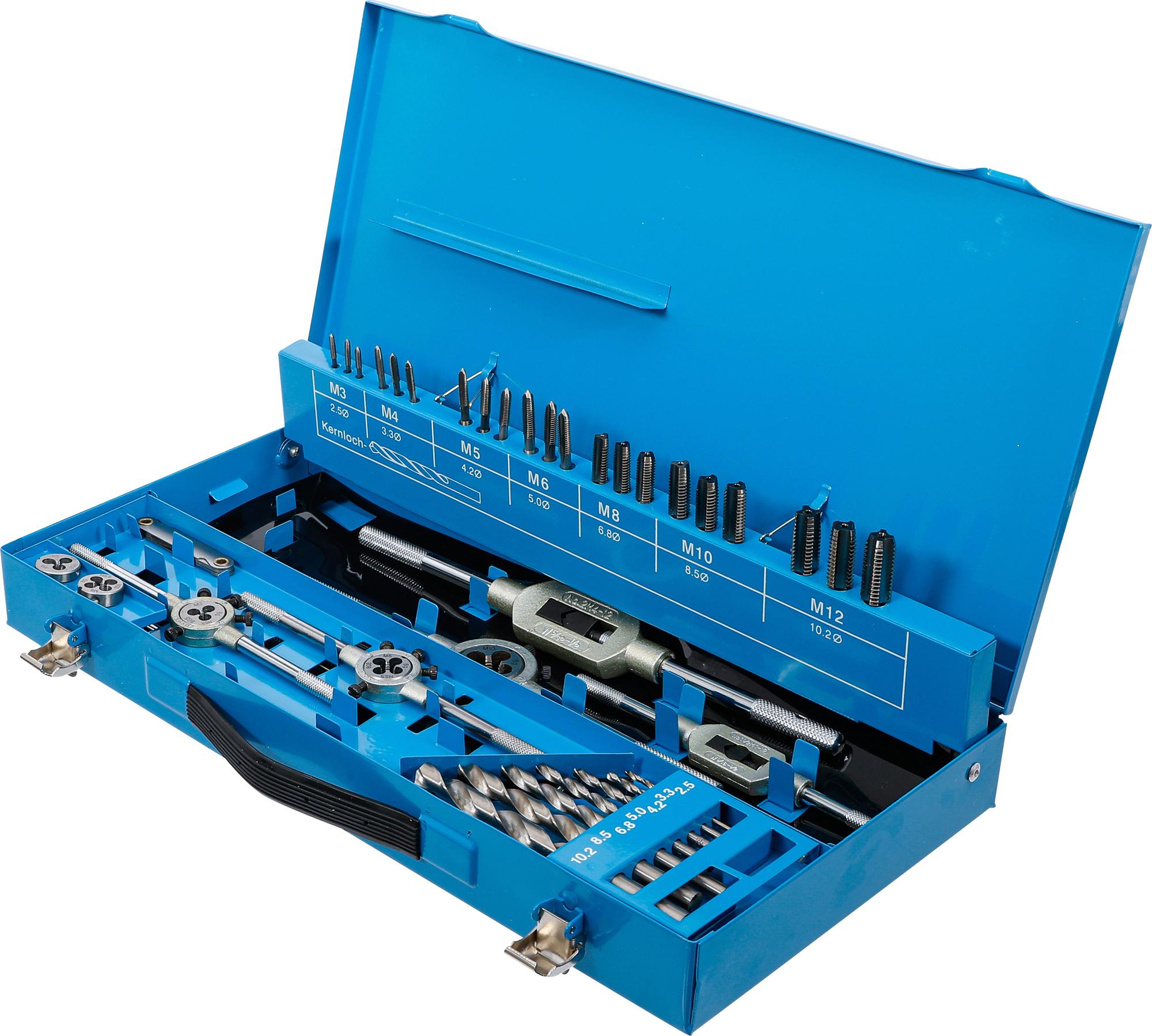

packed in a metal case
includes the following tools:
7 tap sizes (DIN 352), each size includes pre-cutter, central-cutter, main-cutter M3 x 0.5 - M4 x 0.7 - M5 x 0.8 - M6 x 1.0 - M8 x 1.25 - M10 x 1.5 - M12 x 1.75
7-piece die set (DIN 223): M3 x 0.5 (Ø 20 x 5 mm) - M4 x 0.7 (Ø 20 x 5 mm) - M5 x 0.8 (Ø 20 x 7 mm) - M6 x 1.0 (Ø 20 x 7 mm) - M8 x 1.25 (Ø 25 x 9 mm) - M10 x 1.5 (Ø 30 x 11 mm) - M12 x 1.75 (Ø 38 x 14 mm)
5 die holders (DIN 225): No. 1 - 2 - 3 - 4 - 5
#1 = M3 - M4
#2 = M5 - M6
#3 = M8
#4 = M10
#5 = M12
2 tap wrenches (DIN 1814): No. 1 - 2
#1 = M1 - M10
#2 = M4 - M12
7 HSS drills (DIN 338) 2.5 - 3.3 - 4.2 - 5 - 6 - 8 - 8.5 - 10.2 mm
1 screwpitch gauge
1 Screwdriver
Technical data
Material HSS G steel
Gross weight 3870 g
