TILE CUTTING TOOL 600MM 3 FUNCTIONS
00300
Mark
Vorel
Symbol
00300
Series
GRF
Material
steel, rubber
Application
glaze
Max. board thickness
14mm
Set contents
tile cutting device, square, cutting wheel, punch for cutting holes
Cutting diameter
30-80mm
Blade material
tungsten carbide
Cutting wheel dimensions
16x6x3mm
Mass
6.5kg
Cutting angle in the horizontal plane
0-45˚
Functions
straight cutting, angle cutting, cutting holes
Cutting length
600mm
Base dimensions
780x180mm
Guide diameter
19mm

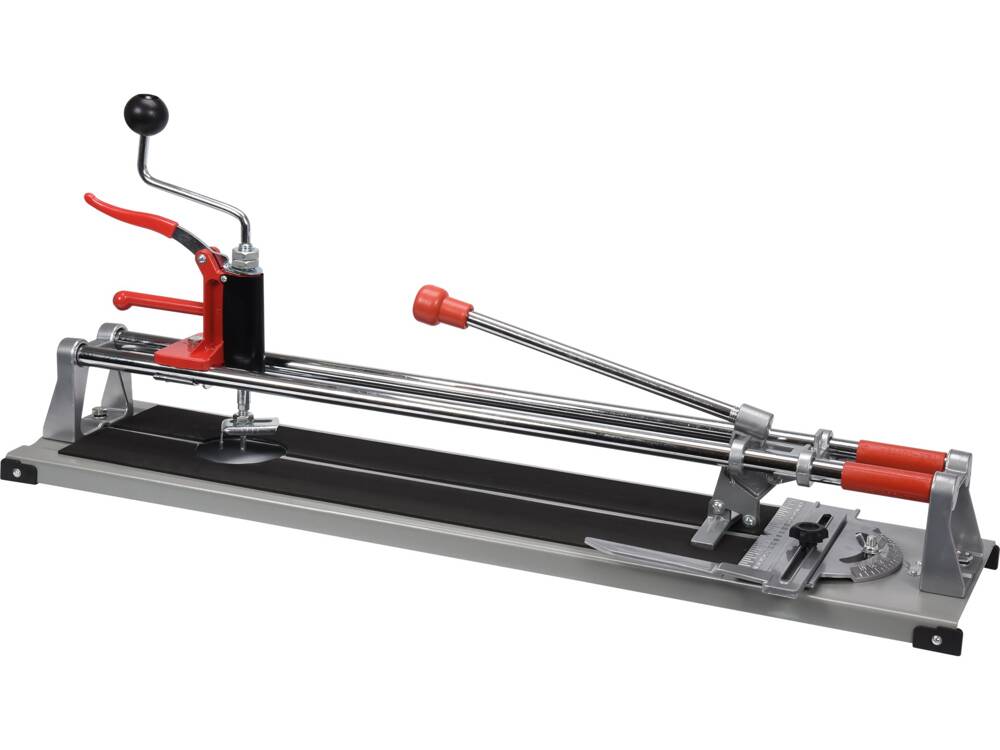

The tile cutting machine has a stable base made of thick steel sheet, which is additionally lined with a layer of technical micro-rubber. A movable angle bracket mounted on the countertop allows you to cut tiles at any angle.
The device is equipped with a cutting wheel with dimensions of 16x6x3mm made of specially hardened sintered carbides, mounted on two parallel guides enabling stable and precise cutting.

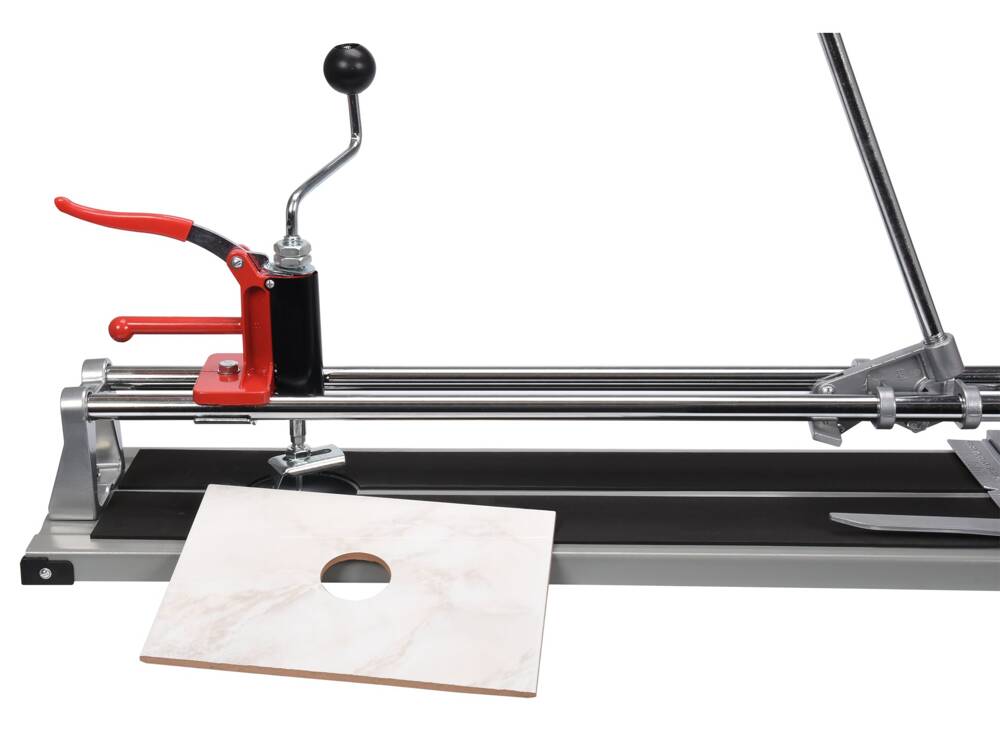

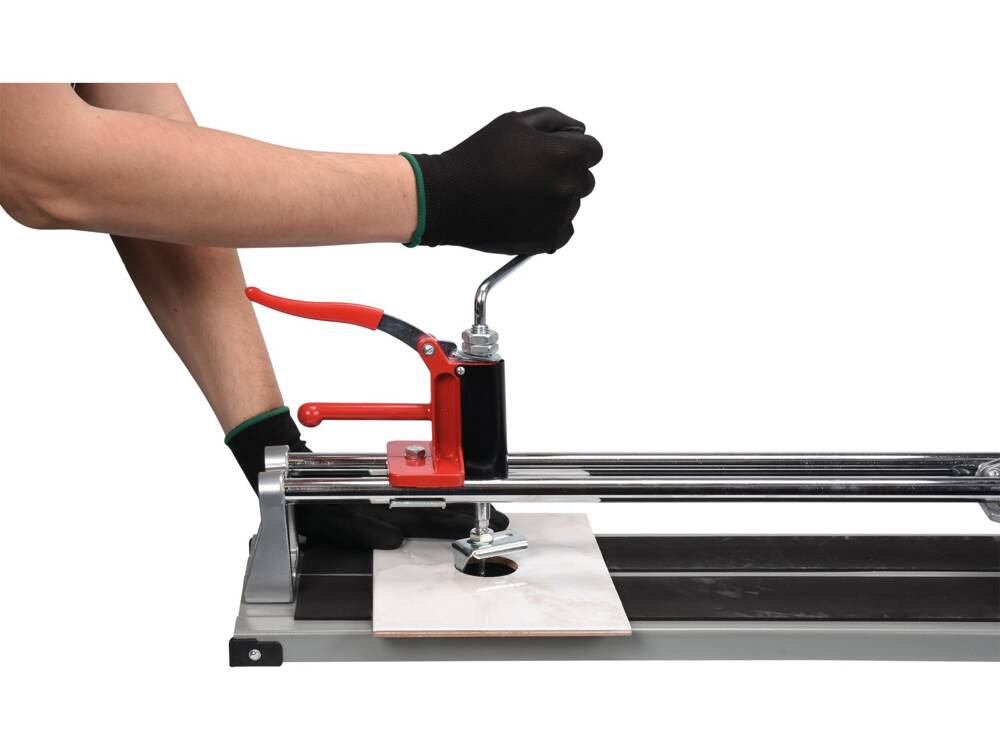

Additionally, a spring-pressed punching die for cutting holes from 30 to 80 mm in diameter can be mounted on the guides.
Solid and stable construction allows the device to be used for renovation and tiling works.
Destiny:
Used for renovation and tiling works.
Contents of the package:
device for tiles 600mm
square, cutting wheel 16x6x3 mm
die for cutting holes
